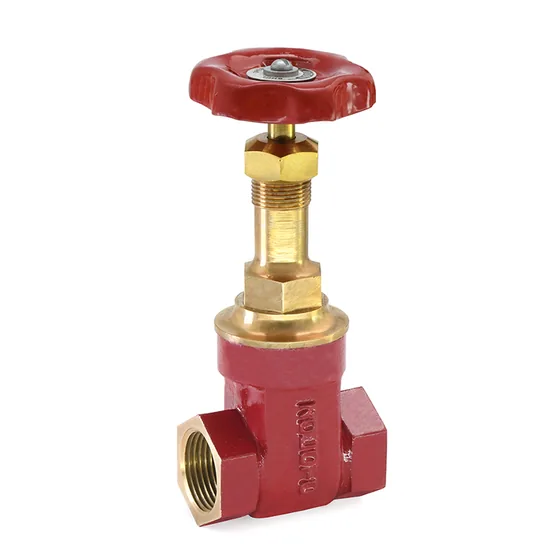

Dealer for ZolotoZoloto Bronze Gate Valve, Rising Stem, Class 2, Screwed (1035C)
Class 2 bronze gate valve with an inside screw rising stem and female threaded ends, 15 mm to 50 mm, with a 225°C temperature limit.
- Rising stem, inside screw, solid wedge, integral seat
- Female threads to IS 554 / BS 21 / ISO 7
- Can be re-packed under pressure
- Sheet metal handwheel and PTFE gland packing
- Maximum working temperature 225°C
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 1035C |
|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
| A ±1.5 | 60 | 60 | 70 | 80 | 90 | 100 | |
| B ~ | 120 | 128 | 150 | 188 | 214 | 243 | |
| ØC ~ | 60 | 65 | 70 | 80 | 90 | 110 | |
| D | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | |
| Shell | 2.4 Mpa | ||||||
| Seat & Back Seat | 1.6 Mpa | ||||||
| Maximum Working Temperature | 225°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
