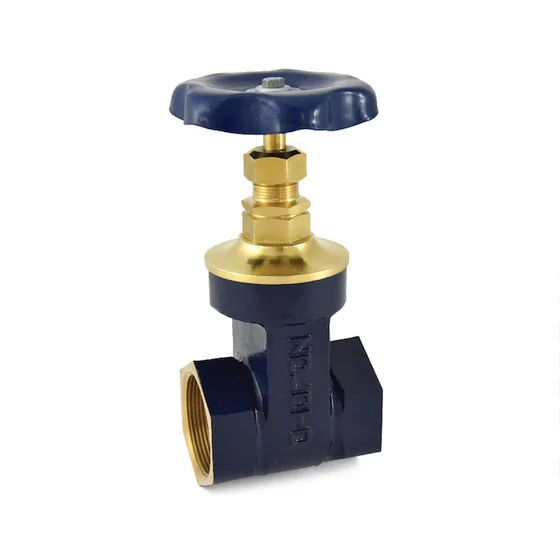

Zoloto Bronze Gate Valve, IS 778 Class 1, Screwed (1035)

BronzeIS 778 Class 1ISIScrewed8 mm to 100 mm

ISI marked bronze gate valve made to IS 778 Class 1, with a solid wedge and non rising stem, female threaded, 8 mm to 100 mm.

Design standard IS 778, Class 1, ISI marked
Female threads to IS 554 / BS 21 / ISO 7
Screwed in bonnet, inside screw, non rising stem, solid wedge
Can be re-packed under pressure; PTFE gland packing
Maximum working temperature 45°C

Standards and approvals: IS 778, Class-1, ISI, IS:778 CL-1

Sizes: 8 mm to 100 mm

Download the official Zoloto catalogue (PDF, 2.4 MB)

Specifications

Specification	8 mm	10 mm	15 mm	20 mm	25 mm	32 mm	40 mm	50 mm	65 mm	80 mm	100 mm	1035
Size (Inches)	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4
Size (mm)	8	10	15	20	25	32	40	50	65	80	100
A ±1.5	50	50	60	60	70	80	90	100	105	125	160
B ~	84	89	105	117	132	150	165	190	232	268	332
ØC ~	50	50	60	65	70	80	90	110	115	140	160
D	1/4″	3/8″	1/2″	3/4″	1″	1 1/4″	1 1/2″	2″	2 1/2″	3″	4″
Shell												1.5 MPa
Seat & Back Seat												1.0 MPa
Maximum Working Temperature												45°C

Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
