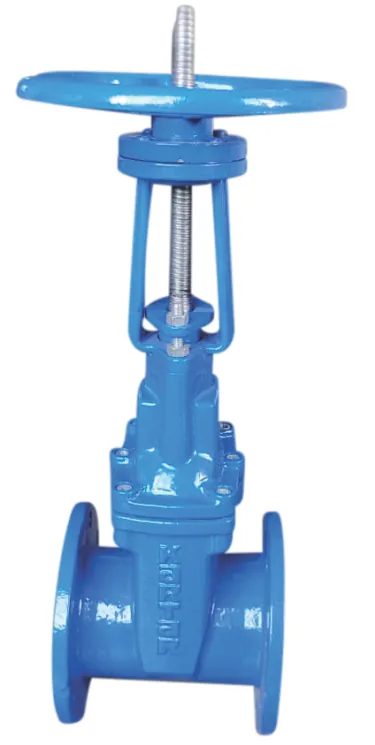

Authorised distributor for Kartar ValvesDuctile iron resilient seated gate valve with a rising stem of the outside screw and yoke type, handwheel operated, with EPDM coated DI wedge, toroidal sealing and 250 micron epoxy coating, to IS 14846 and BS 5163 in PN1.6, 50 mm to 600 mm.
Standards and approvals: IS:14846, BS: 5163
| Specification | K511 R |
|---|---|
| Item | Kartar D.I Resilient Seated Gate Valve- Rising with HW |
| Pressure rating | PN1.6 |
| Type | Rising (OS&YT) |
| Ends | Flanged |
| Body | Pocket Less |
| Shaft | SS(AISI 410) |
| Sealing | Toroidal |
| Drilling | IS:1538 |
| Wedge | EPDM Coated DI |
| Coating | 250 Micron Epoxy |
| Design Standard | IS:14846 / BS: 5163 |
| Sizes (MM) | 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 600 |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
