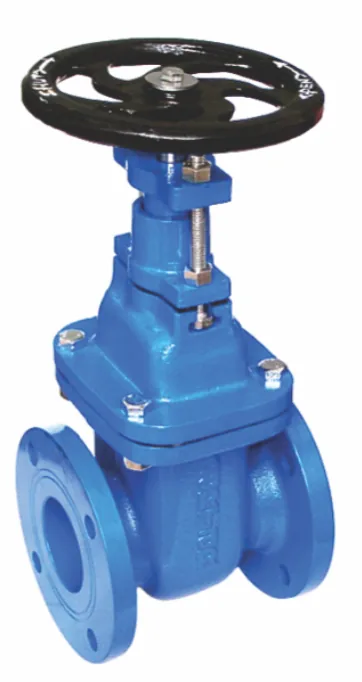

Authorised distributor for Kartar ValvesDuctile iron resilient seated gate valve with a non rising stem, pocket less body, toroidal sealing, EPDM coated DI wedge and 250 micron epoxy coating, to IS 14846 and BS 5163. With handwheel (K511, 50 mm to 1000 mm) or cap (K511C, 50 mm to 300 mm); the website also lists PN10 and PN16, ISI marking and resilient or metal seating.
Standards and approvals: ISI Marked, IS:14846, BS:5163
| Specification | Details | K511 | K511C |
|---|---|---|---|
| Working & Test Pressure | Sluice Valve PN 1.0 Sluice Valve PN 1.0 Gate Valve CI 150 Hydrostatic Test (Mpa) Body / Shell 1.5, 2.4, 3.0 Hydrostatic Test (Mpa) Seat 1.0, 1.6, 2.2 Pneumatic Test (Mpa) Seat NA, NA, 0.7 | ||
| Item | Kartar D.I Resilient Seated Gate Valve- Non Rising (PN 1.6) | Kartar D.I Resilient Seated Gate Valve- Non Rising (PN 1.6) | |
| Variant | with Handwheel | with Cap | |
| Type | Non Rising | Non Rising | |
| Ends | Flanged | Flanged | |
| Body | Pocket Less | Pocket Less | |
| Shaft | SS(AISI 410) | SS(AISI 410) | |
| Sealing | Toroidal | Toroidal | |
| Drilling | IS:1538 | IS:1538 | |
| Wedge | EPDM Coated DI | EPDM Coated DI | |
| Coating | 250 Micron Epoxy | 250 Micron Epoxy | |
| Design Standard | IS:14846 / BS: 5163 | IS:14846 / BS: 5163 | |
| Note | for Gear see K507 | for Gear see K507 | |
| Sizes (MM) | 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | 50, 65, 80, 100, 125, 150, 200, 250, 300 |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
