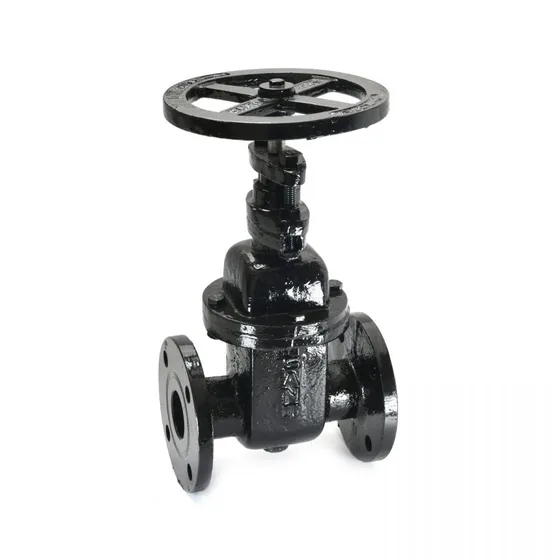

Authorised distributor for Sant ValvesSant Valves CR-19 Cast Iron Sluice Valve, IS 780 Dimensions, PN 10
PN 10 cast iron wedge gate sluice valve with face to face and flange dimensions as per IS 780, non rising stem and renewable wedge. Sizes 50 mm to 300 mm, for water.
- Cast iron body to IS:210 Gr.FG200
- Renewable solid wedge and renewable seat, Cu-alloy rings
- Inside screw, non rising stem, SS AISI-410 stem, graphite packing
- Flanges to IS:780 / IS:1538 FF drilled, body test 1.5 MPa
Standards and approvals: Face to Face & Flange Dimensions as per IS:780
Sizes: 50 mm to 300 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Nominal Size (Inches) | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| F | 215± 2 | 230± 2 | 230± 2 | 255± 2 | 266± 2 | 280± 2 | 318± 2 | 355± 2 | 380± 2 |
| H (Approx.) | 350 | 360 | 400 | 435 | 470 | 525 | 610 | 825 | 900 |
| ∅W (Approx.) | 225 | 225 | 225 | 225 | 225 | 320 | 320 | 400 | 400 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
