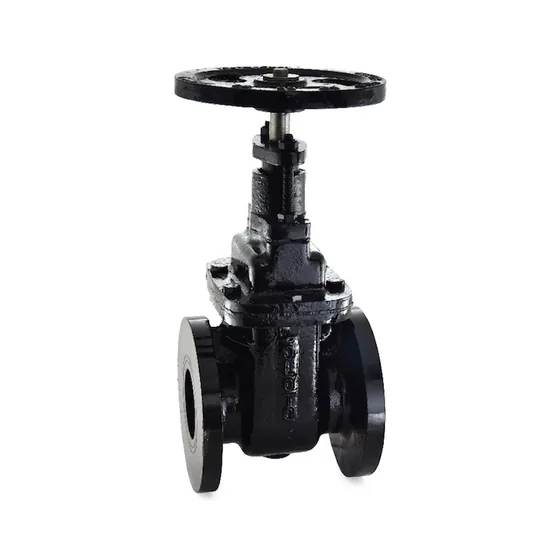

Dealer for ZolotoZoloto Cast Iron Sluice Valve, PN 1.0, Non Rising Stem (1079A)
Cast iron sluice valve made to IS 14846 PN 1.0, with bolted bonnet and non rising stem, flanged to IS 1538, from 50 mm to 600 mm. Listed for plumbing and fire fighting.
- Design standard IS 14846 PN 1.0, ISI marked
- IS certification of the 350 mm to 600 mm sizes is in process
- Bolted bonnet, inside screw, non rising stem
- Handwheel operated, flanges to IS 1538
- Maximum working temperature 45°C
Standards and approvals: IS 14846 PN 1.0, ISI, IS:14846 PN 1.0
Sizes: 50 mm to 600 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm | 350 mm | 400 mm | 450 mm | 600 mm | 1079A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 2* | 2 1/2* | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14*1 | 16*1 | 18*1 | 24*1 | |
| Size (mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350*1 | 400*1 | 450*1 | 600*1 | |
| A | 178 ±2 | 190 ±2 | 203 ±2 | 229 ±2 | 254 ±2 | 267 ±2 | 292 ±2 | 330 ±2 | 356 ±2 | 381 ±3 | 406 ±3 | 432 ±3 | 508 ±3 | |
| B | 16 +2 | 16 +2 | 21 ±3 | 22 ±3 | 22.5 ±3 | 23 ±3 | 24.5 ±3 | 26 ±3 | 27.5 ±3 | 29 ±3 | 30 ±3 | 31.5 ±3 | 36 ±3 | |
| ØC | 165 (+1.5/-1.0) | 185 (+1.5/-1.0) | 200 ±4.5 | 220 ±4.5 | 250 ±4.5 | 285 (+5.5/-2.5) | 340 (+5.5/-2.5) | 395 (+5.5/-2.5) | 445 (+5.5/-2.5) | 505 (+6.5/-3.0) | 565 (+6.5/-3.0) | 615 (+6.5/-3.0) | 780 (+6.5/-3.0) | |
| ØD ±5.0 | 225 | 225 | 225 | 320 | 320 | 320 | 360 | 400 | 400 | 500 | 640 | 720 | 720 | |
| E (Max.) | 365 | 380 | 425 | 470 | 485 | 595 | 725 | 835 | 910 | 1020 | 1110 | 1200 | 1500 | |
| Shell | 1.5 MPa | |||||||||||||
| Seat | 1.0 MPa | |||||||||||||
| Maximum Working Temperature | 45°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
