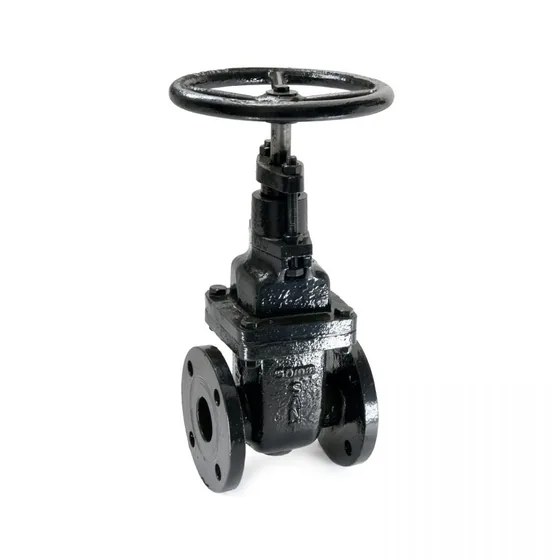

Authorised distributor for Sant ValvesSant Valves CR-32 Cast Iron Sluice Valve, IS 14846, PN 10, Non Rising Stem
ISI marked cast iron sluice valve to IS 14846, rated PN 10, with bolted bonnet and non rising stem. Drilled IS 1538 flanges, 50 mm to 300 mm, for water mains.
- IS 14846, ISI marked, PN 10 PD type
- Cast iron body to IS:210 Gr.FG200, solid wedge, renewable seat
- Cu-alloy rings, SS (12 Cr.12) stem, rubber O ring gland
- Flanges to IS:1538 FF drilled, body test 1.5 MPa
Standards and approvals: IS:14846, ISI Marked
Sizes: 50 mm to 300 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Nominal Size (Inches) | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| F | 178±2 | 190±2 | 203±2 | 229±2 | 254±2 | 267±2 | 292±2 | 330±3 | 356±3 |
| H (Approx.) | 345 | 360 | 400 | 450 | 480 | 545 | 675 | 770 | 875 |
| ∅W (Approx.) | 225 | 225 | 225 | 320 | 320 | 320 | 360 | 400 | 400 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
