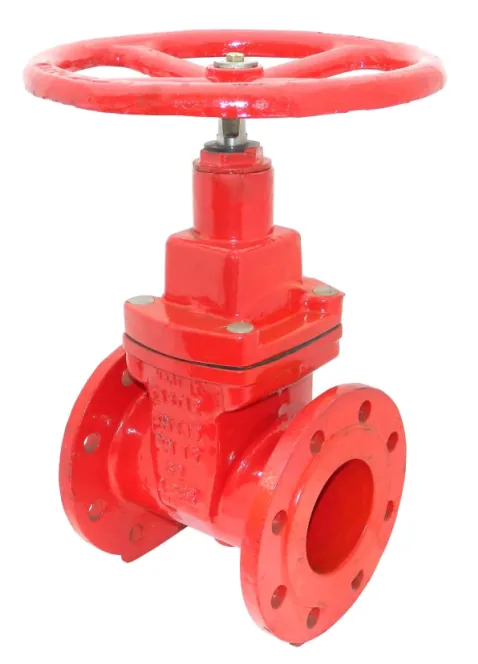

Authorised distributor for Kartar ValvesA red ductile iron resilient (soft) seated gate valve for fire lines, with SS AISI 410 stem, EPDM coated DI wedge and vacuum tight design, to BS 5163 and IS 14846, non rising with handwheel, PN16. Sizes 50 mm to 200 mm, higher on request.
Standards and approvals: BS:5163, IS:14846
| Specification | K-933 |
|---|---|
| Item Description | RED COLOR D.I. Resilient (Soft) Seated Gate Valve, SS Stem (AISI 410), EPDM Coated DI Wedge, 100% Vaccumm Tight Design, Designed to BS:5163/IS:14846 Non-Rising Stem Type with Hand Wheel Operation in PN16. |
| Size | 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm |
| Note | Higher sizes are available on request. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
Cast iron sluice valve with a non rising stem, flanged ends drilled to IS 1538, SS AISI 410 shaft and gunmetal working parts, made to IS 14846. With cap (K501 PN1.0, K503 PN1.6) or handwheel (K502 PN1.0, K504 PN1.6), 50 mm to 600 mm.
Cast iron sluice valve with a rising spindle, flanged ends drilled to IS 1538, SS AISI 410 shaft and gunmetal working parts, made to IS 14846, in PN1.0 (K505) or PN1.6 (K506), 50 mm to 600 mm.
Extra strong non rising sluice valves: the red cast iron K-931X in PN16 to IS 14846 (50 mm to 200 mm), and the made to order high pressure K504-X (PN1.6, CI body), K504-XX (PN2.0, DI body) and K504-XXX (PN2.5, DI body) in 80 mm to 200 mm.
A red cast iron sluice valve with a rising spindle for fire lines, flanged ends, SS AISI 410 stem and bronze (gunmetal) working parts, made to IS 14846 with handwheel operation in PN 16. Sizes 50 mm to 200 mm, higher on request.
Ductile iron resilient seated gate valve with a non rising stem, pocket less body, toroidal sealing, EPDM coated DI wedge and 250 micron epoxy coating, to IS 14846 and BS 5163. With handwheel (K511, 50 mm to 1000 mm) or cap (K511C, 50 mm to 300 mm); the website also lists PN10 and PN16, ISI marking and resilient or metal seating.
Ductile iron resilient seated gate valve with a rising stem of the outside screw and yoke type, handwheel operated, with EPDM coated DI wedge, toroidal sealing and 250 micron epoxy coating, to IS 14846 and BS 5163 in PN1.6, 50 mm to 600 mm.
Sizes: 15 mm, 20 mm, 25 mm, 40 mm
Forged carbon steel gate valve to API 602 with bolted bonnet, outside screw and yoke and rising stem. Class 600 flanged ends, 15 mm to 40 mm.
Sizes: 15 mm to 40 mm
High pressure forged steel gate valve conforming to BS-5352/API 602, rated Class 1500 with socket welded ends. Sizes 15 mm to 40 mm.
Sizes: 8 mm to 100 mm
Compact hex body bronze gate valve with a non rising stem, designed for fitting where space is tight. Female threaded ends, 8 mm to 100 mm.
Sizes: 8 mm to 100 mm
Peg type bronze gate valve designed to BS EN 12288 (BS 5154), with a non rising stem and female threaded ends, 8 mm to 100 mm.
Sizes: 2 ½” to 12″
UL Listed non rising stem gate valve to AWWA C515, 200 psi nominal pressure, with flanged ends, handwheel operated, 2½ inch to 12 inch.
Sizes: 2 ½” to 12″
UL Listed non rising stem gate valve to AWWA C515, 200 psi, with grooved ends to metric or AWWA C606, 2½ inch to 12 inch.
