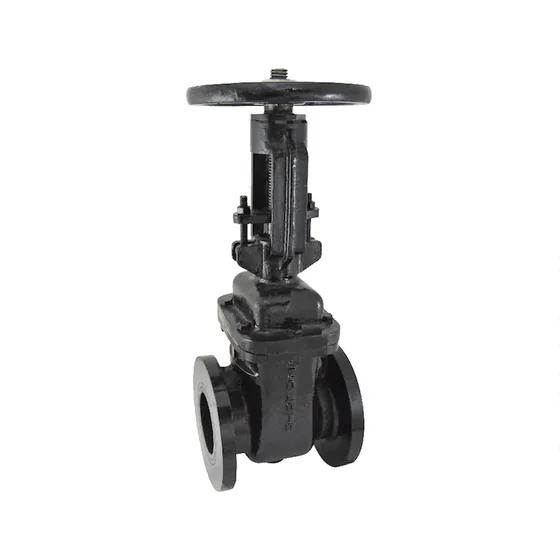

Dealer for ZolotoZoloto Cast Iron Sluice Valve, PN 1.6, Rising Stem OS&Y (1079D)
PN 1.6 outside screw and yoke cast iron sluice valve with a rising spindle and solid wedge, flanged to IS 1538, 50 mm to 300 mm.
- Design reference standard IS 14846
- Bolted bonnet, outside screw and yoke, rising spindle, solid wedge
- Handwheel operated, flanged ends to IS 1538
- Can be re-packed under pressure
- Maximum working temperature 45°C
Standards and approvals: IS 14846
Sizes: 50 mm to 300 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 150 mm | 200 mm | 250 mm | 300 mm | 1079D |
|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 2* | 2 1/2* | 3 | 4 | 6 | 8 | 10 | 12 | |
| Size (mm) | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |
| A ±2 | 178 | 190 | 203 | 229 | 267 | 292 | 330 | 356 | |
| B | 16 +2 | 16 +2 | 21 ±3 | 22 ±3 | 23 ±3 | 24.5 ±3 | 26 ±3 | 27.5 ±3 | |
| ØC | 165 (+1.5/-1.0) | 185 (+1.5/-1.0) | 200 ±4.5 | 220 ±4.5 | 285 (+5.5/-2.5) | 340 (+5.5/-2.5) | 395 (+5.5/-2.5) | 445 (+5.5/-2.5) | |
| ØD ~ | 210 | 210 | 225 | 255 | 310 | 395 | 460 | 460 | |
| E (Max.) | 350 | 410 | 455 | 540 | 655 | 780 | 960 | 1140 | |
| Shell | 2.4 MPa | ||||||||
| Seat | 1.6 MPa | ||||||||
| Maximum Working Temperature | 45°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
