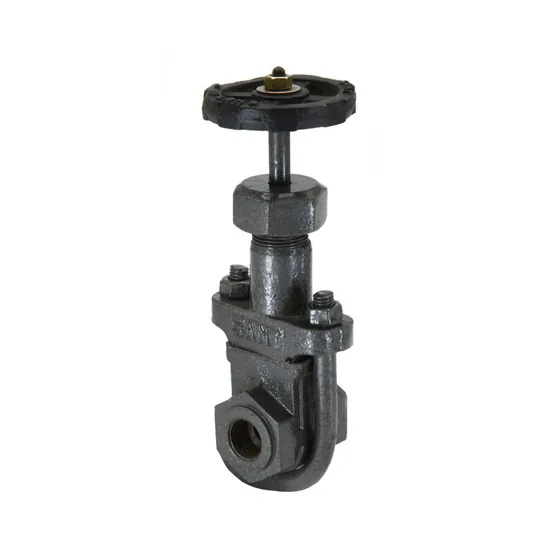

Authorised distributor for Sant ValvesSant Valves CI-13 Cast Iron Gate Valve, All Iron, Clip Pattern, Screwed
All iron version of Sant's clip pattern gate valve, with integral seat and no bronze trim. Screwed BSP ends, 15 mm to 80 mm, for water and oil.
- Cast iron body to IS:210 Gr.FG200, all iron construction
- Clamped bonnet, inside screw, rising stem, solid wedge
- Integral seat, graphite gland packing
- Female BSP parallel threads to BS 21, body test 300 psig
Sizes: 15 mm to 80 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm |
|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 |
| F | 54±2 | 59±2 | 64±2 | 92±2 | 83±2 | 93±2 | 123±2 | 142±2 |
| H (Approx.) | 155 | 170 | 220 | 225 | 265 | 335 | 370 | 410 |
| ∅W (Approx.) | 55 | 70 | 78 | 78 | 78 | 105 | 127 | 150 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
