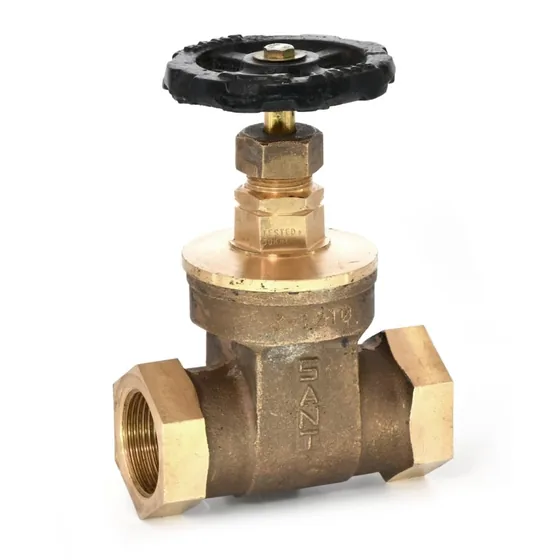

Authorised distributor for Sant ValvesSant Valves IS-7 Bronze Gate Valve, IS 778 Class 3, Screwed
Class 3 gun metal gate valve made to IS-778:1971, with inside screw and non rising stem. Screwed ends, 15 mm to 50 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2
- Screwed in bonnet, inside screw, non rising stem, solid wedge
- PTFE gland packing, Cu-alloy trim
- Female threads to IS:554 parallel, body test 50 kg/cm²
Standards and approvals: IS-778:1971, IS - 778 : 1971 Class-3
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm |
|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 |
| F | 83±1.5 | 86±1.5 | 100±1.5 | 120±1.5 | 120±1.5 | 133±1.5 |
| H (Approx.) | 110 | 125 | 135 | 155 | 185 | 200 |
| ∅W (Approx.) | 60 | 65 | 80 | 90 | 105 | 105 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
