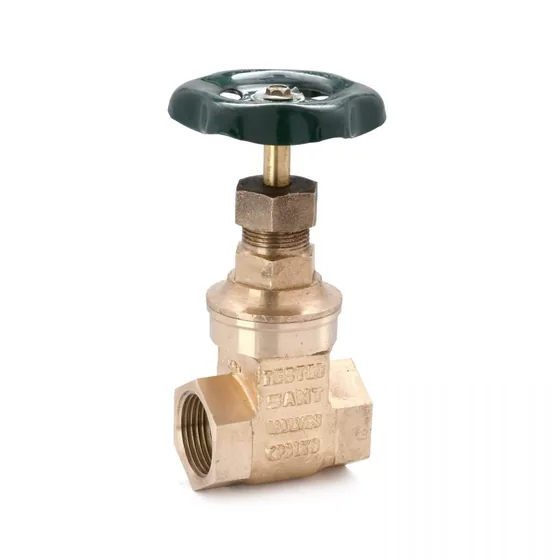

Authorised distributor for Sant ValvesSant Valves SBM-1 Bronze Gate Valve, Peglar Type PN-20, Screwed BSP
Peglar type PN-20 gun metal gate valve with non rising stem and female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2
- Screwed in bonnet, inside screw, solid wedge, integral seat
- Cu-alloy trim, graphite gland packing
- Body test 30.60 kg/cm², seat test 20.40 kg/cm²
Sizes: 8 mm to 100 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 43 | 43 | 45 | 51 | 64 | 66 | 70 | 76 | 95 | 112 | 127 |
| H | 90 | 90 | 90 | 100 | 110 | 125 | 142 | 165 | 210 | 235 | 325 |
| W | 50 | 50 | 50 | 60 | 65 | 80 | 80 | 90 | 105 | 115 | 145 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
