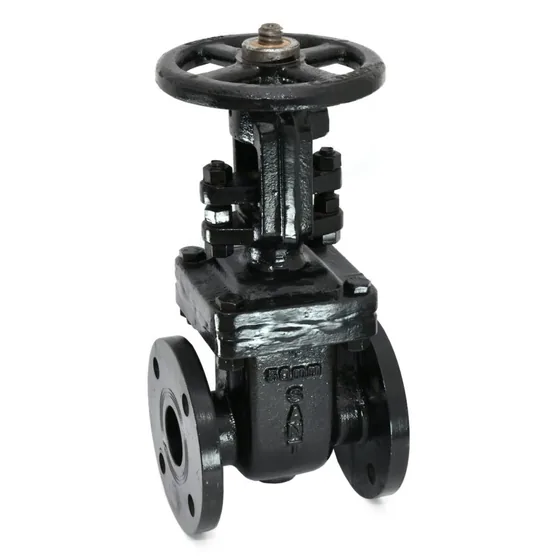

Authorised distributor for Sant ValvesSant Valves CR-32A Cast Iron Sluice Valve, PN 10, OS&Y Rising Stem
Cast iron wedge gate sluice valve with outside screw and yoke and rising stem, rated PN 10, with face to face dimensions as per IS 14846. Drilled IS 1538 flanges, 50 mm to 300 mm.
- OS&Y rising stem shows valve position
- Cast iron body to IS:210 Gr.FG200, solid wedge, renewable seat
- Cu-alloy rings, SS AISI-410 stem, graphite gland packing
- Flanges to IS:1538 FF drilled, body test 1.5 MPa
Standards and approvals: Face To Face as per IS:14846
Sizes: 50 mm to 300 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Nominal Size (Inches) | 2 | 2.1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| F | 178±2 | 190±2 | 203±2 | 229±2 | 254±2 | 267±2 | 292±2 | 330±3 | 356±3 |
| H (Approx.) | 315 | 365 | 410 | 475 | 530 | 620 | 795 | 930 | 1100 |
| ∅W (Approx.) | 178 | 178 | 210 | 254 | 254 | 305 | 400 | 450 | 500 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
