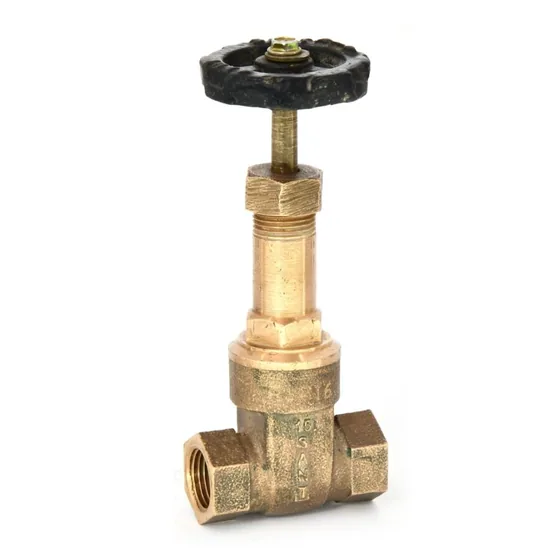

Authorised distributor for Sant ValvesSant Valves IS-5A Bronze Gate Valve, Rising Stem, IS 778 Class 2, Screwed
ISI marked gun metal gate valve to IS 778 Class 2 with rising stem and screwed ends. Sizes 15 mm to 100 mm, for water and oil.
- IS 778 Class 2, ISI marked
- Gun metal body to IS:318 Gr.LTB2, solid wedge, integral seat
- Inside screw, rising stem, PTFE gland packing
- Female threads to IS:554 parallel, body test 2.4 MPa
Standards and approvals: IS-778, IS : 778 Class-2, ISI Marked
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 60±1.5 | 60±1.5 | 70±1.5 | 80±1.5 | 90±1.5 | 100±1.5 | 105±1.5 | 125±1.5 | 160±1.5 |
| H (Approx.) | 130 | 145 | 165 | 180 | 210 | 250 | 300 | 380 | 480 |
| ∅W (Approx.) | 60 | 60 | 65 | 85 | 90 | 90 | 105 | 120 | 145 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
