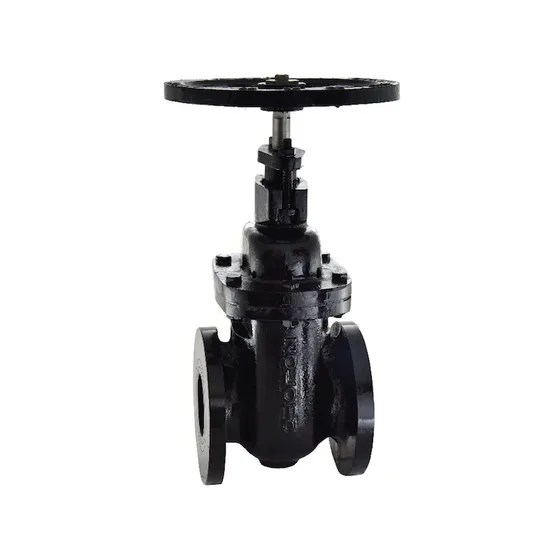

Dealer for ZolotoZoloto Cast Iron Sluice Valve, PN 1.6, Non Rising Stem (1079B)
PN 1.6 cast iron sluice valve made to IS 14846 and ISI marked, with bolted bonnet and non rising stem, flanged to IS 1538, 50 mm to 300 mm.
- Design standard IS 14846 PN 1.6, ISI marked
- Bolted bonnet, inside screw, non rising stem
- Handwheel operated, flanges to IS 1538
- Listed for plumbing and fire fighting
- Maximum working temperature 45°C
Standards and approvals: IS 14846 PN 1.6, ISI, IS:14846 PN 1.6
Sizes: 50 mm to 300 mm
Specifications
Specifications
| Specification | 50 mm | 65 mm | 80 mm | 100 mm | 125 mm | 150 mm | 200 mm | 250 mm | 300 mm | 1079B |
|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 2* | 2 1/2* | 3 | 4 | 5 | 6 | 8# | 10# | 12# | |
| Size (mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200# | 250# | 300# | |
| A | 178 ±2 | 190 ±2 | 203 ±2 | 229 ±2 | 254 ±2 | 267 ±2 | 292 ±3 | 330 ±3 | 356 ±3 | |
| B | 16 +2 | 16 +2 | 21 ±3 | 22 ±3 | 22.5 ±3 | 23 ±3 | 24.5 ±3 | 26 ±3 | 27.5 ±3 | |
| ØC | 165 (+1.5/-1.0) | 185 (+1.5/-1.0) | 200 ±4.5 | 220 ±4.5 | 250 ±4.5 | 285 (+5.5/-2.5) | 340 (+5.5/-2.5) | 395 (+5.5/-2.5) | 445 (+5.5/-2.5) | |
| ØD ±5 | 280 | 280 | 280 | 360 | 360 | 360 | 450 | 640 | 640 | |
| E (Max.) | 365 | 380 | 425 | 470 | 485 | 595 | 725 | 835 | 910 | |
| Shell | 2.4 MPa | |||||||||
| Seat | 1.6 MPa | |||||||||
| Maximum Working Temperature | 45°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
