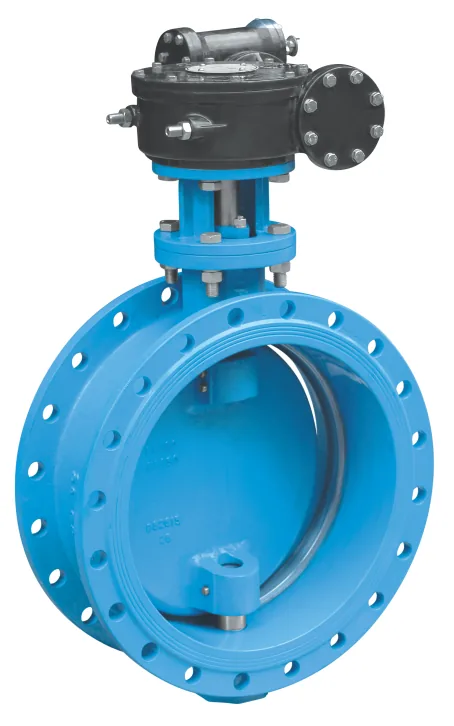

Authorised distributor for Kartar ValvesDouble flanged, double eccentric butterfly valve with a DI body and disc and a Nitrile or EPDM rubber seal, PN 1.6, gear operated. Sizes 80 mm to 1000 mm.
| Specification | K716 |
|---|---|
| Item | Kartar Double Flanged Butterfly valve in DI Body with Rubber Seal in PN 1.6 operation with Gear |
| Disc | Disc DI |
| Design type | Double Ecentric |
| Seal | Nitrile / EPDM |
| Shalf | SS(AISI 410) |
| Sizes (MM) | 80, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
