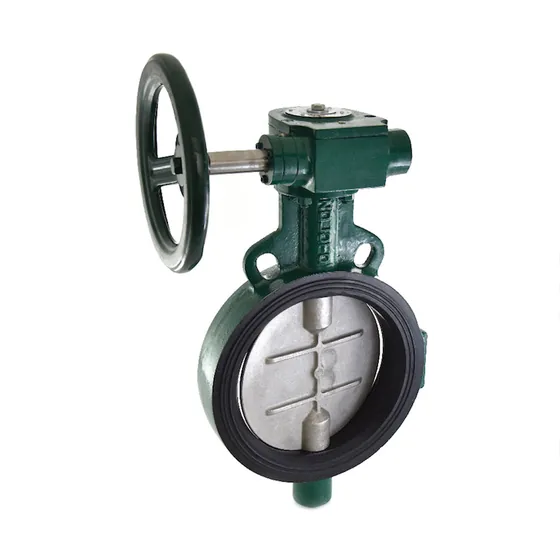

Dealer for ZolotoGear operated version of the stainless steel disc wafer butterfly valve, PN 1.6, for 200 mm to 300 mm lines, listed with the ISI mark.
Standards and approvals: IS 13095 / BS EN 593 (BS 5155), ISI, BSEN 593 / IS:13095
Sizes: PN 1.6, 200 mm, 250 mm, 300 mm
| Specification | PN 1.6 | 200 mm | 250 mm | 300 mm |
|---|---|---|---|---|
| Shell | 2.4 MPa | |||
| Seat | 1.76 MPa | |||
| Maximum Working Pressure | 1.6 MPa | |||
| Maximum Working Temperature | 90°C | |||
| Size (Inches) | 8 | 10 | 12 | |
| Size (mm) | 200 | 250 | 300 | |
| A ±1.5 | 60 | 68 | 78 | |
| ØB | 201.6 | 252.2 | 301.3 | |
| C ~ | 180 | 220 | 250 | |
| D ~ | 295 | 320 | 344 |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
Sizes: PN 1.6 to 150 mm
Lever operated wafer butterfly valve with SG iron body and SG iron disc, rated PN 1.6 (1.6 MPa), for 40 mm to 150 mm lines. Designed to IS 13095 / BS EN 593 and listed with the ISI mark.
Sizes: PN 1.0 to 600 mm
Gear operated wafer butterfly valve with SG iron body and disc for large lines from 200 mm to 600 mm, designed to IS 13095 / BS EN 593, in PN 1.0 and PN 1.6 ratings.
Sizes: PN 1.6 to 150 mm
Lever operated wafer butterfly valve with a stainless steel disc (CF8, the cast form of SS 304) in an SG iron body, PN 1.6, 40 mm to 150 mm, listed with the ISI mark.
Sizes: PN 1.0 to 200 mm
Wafer butterfly valve with a stainless steel disc and a double acting pneumatic actuator, rated PN 1.0 (1.0 MPa), 40 mm to 200 mm, for automated open and shut service.
Sizes: PN 1.0 to 350 mm
Wafer butterfly valve with an electrical actuator and a stainless steel disc, rated PN 1.0 (1.0 MPa), 40 mm to 350 mm, for remote or automatic control from a BMS or PLC.
Sizes: PN 1.6 to 300 mm
PN 1.6 (1.6 MPa) version of the electrically actuated wafer butterfly valve, with a stainless steel disc, 40 mm to 300 mm, for BMS or PLC control.
Sizes: 50 mm to 377 mm
Grooved end butterfly valve in ductile iron, designed to BS EN 593 with grooves to ISO 6182, rated PN16. Sizes listed from 50 mm to 377 mm.
Sizes: 50 mm to 200 mm
Lever operated wafer butterfly valve with a cast iron body, EPDM lining and SS 304 disc, rated PN16. Seat and disc are replaceable, 50 mm to 200 mm.
Wafer type butterfly valve with a CI body and an integrally moulded Nitrile or EPDM liner, PN 1.0, to IS 13095. K701 has a CF8-304 stainless disc and K702 a CF8M-316 disc; sizes 25 mm to 600 mm.
A red cast iron wafer butterfly valve for fire lines, with an S.S. disc, EPDM liner and SS stem, lever operated and direct actuator mountable, in PN 16 and ISI marked. Sizes 50 mm to 200 mm, higher sizes on request.
Sizes: 2 ½” to 12″
UL Listed grooved end butterfly valve designed to API 609, with AWWA C606 grooves and an ISO 5211 top flange, rated 300 psi (21 bar), 2½ inch to 12 inch.
Sizes: 2 ½” to 12″
UL Listed wafer butterfly valve designed to API 609, with ASME B16.1 face to face dimensions and an ISO 5211 top flange, rated 300 psi (21 bar), 2½ inch to 12 inch.
