Karam Megapod, Aluminium Confined Space Anchor
A light aluminium overhead anchor for confined space entry and rescue that one worker can often set up, with telescopic legs and ready fitted mounts for winches and retrieval blocks.

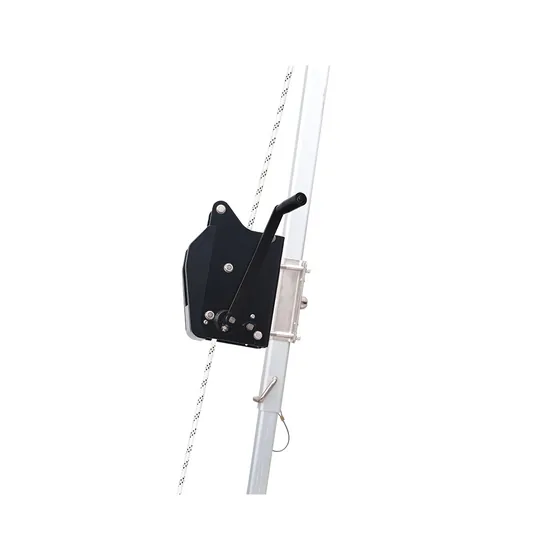

Supplier for KaramKaram Confined Space Winch, EN 1496 Class B, Wire or Synthetic Rope
The PN818 winch for raising and lowering people or material in confined spaces, with three line choices: 10.5 mm kernmantle rope, 6.0 mm galvanized steel wire rope or 6.0 mm synthetic rope.
- PN818(C): kernmantle rope of 10.5 mm, connector as per request
- PN818(DP): galvanized steel wire rope of 6.0 mm with swivel snap hook PN162
- PN818(SR)(DP): synthetic rope of 6.0 mm with swivel snap hook PN162
- Steady, controlled vertical travel for entry, exit and rescue
- EN 1496:2017 Class B; ATEX 2014/34/EU is listed for the C and DP versions
Standards and approvals: EN 1496:2017 Class B, CE, ATEX
Specifications
Specifications
| Specification | PN818(C) | PN818(DP) | PN818(SR)(DP) |
|---|---|---|---|
| Winch Line Material | Kernmantle rope of dia 10.5mm | Galvanized steel wire rope of dia 6.0mm | Synthetic rope of dia 6.0mm |
| Length of Cable | As per request | 35.0m | 35.0m |
| Connector | As per request | Steel swivel snap hook PN162 | Steel swivel snap hook PN162 |
| Compatibility | Can be mounted on tripods. | Can be mounted on tripods, megapods, davit arm and k-pod | Can be mounted on tripods, megapods davit arm and k-pod |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
