Karam Megapod, Aluminium Confined Space Anchor
A light aluminium overhead anchor for confined space entry and rescue that one worker can often set up, with telescopic legs and ready fitted mounts for winches and retrieval blocks.

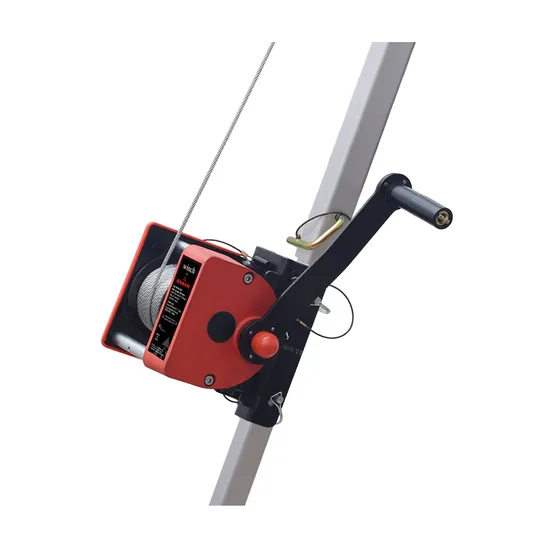

Supplier for KaramKaram Confined Space Winch, Galvanized Wire Rope, EN 1496 Class A
Manual winches for raising and lowering a person or material through a manhole, tank or other confined opening, on 4.8 mm galvanized steel wire rope. PN801(DP) and PN801(40)(DP) end in a steel screw locking karabiner PN112; PN817(DP) ends in a steel swivel snap hook PN162.
- Controlled lifting and lowering of personnel and material
- Galvanized steel wire rope, 4.8 mm diameter
- End connector: screw locking karabiner PN112 or swivel snap hook PN162, depending on model
- Made to work with Karam confined space systems
- EN 1496:2017 Class A and ATEX 2014/34/EU
Standards and approvals: EN 1496:2017 Class A, CE, ATEX
Specifications
Specifications
| Specification | PN801(DP) | PN801(40)(DP) | PN817(DP) |
|---|---|---|---|
| Winch Line Material | Galvanized steel wire rope of dia 4.8mm | Galvanized steel wire rope of dia 4.8mm | Galvanized steel wire rope of dia 4.8mm |
| Length of Cable | 20.0m and 25.0m | 40.0m | 20.0m |
| Connector | Steel screw locking karabiner PN112 | Steel screw locking karabiner PN112 | Steel swivel snap hook PN162 |
| Compatibility | Can be mounted on megapod, tripods and K-pod with the help of their universal mounting brackets respectively | Can be mounted on megapod, tripods and K-pod with the help of their universal mounting brackets respectively | Can be mounted on megapods, tripods and K-pod with the help of their universal mounting brackets respectively |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
