Karam Megapod, Aluminium Confined Space Anchor
A light aluminium overhead anchor for confined space entry and rescue that one worker can often set up, with telescopic legs and ready fitted mounts for winches and retrieval blocks.

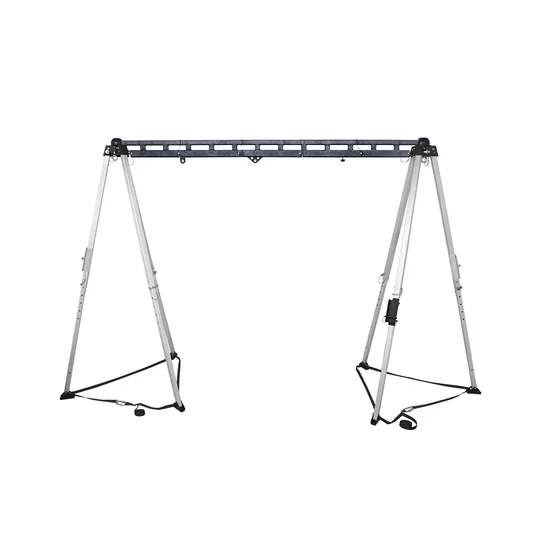

Supplier for KaramKaram Hexapod for Large Below Ground Openings
Built for entry, rescue and lifting at confined spaces with larger openings below ground level. A mobile roller pulley with a stopper lets the anchor point be set right above the user, and the Hexapod suits two person rescue.
- Lightweight aluminium structure
- Mobile roller pulley for movement over longer spans, with a stopper to position the anchor point
- Two auxiliary eye bolts on each tripod
- Rubber soled steel shoes for grip
- Suitable for two person rescue operations
- EN 795:2012 Type B, TS 16415:2013 Type B and ATEX 2014/34/EU
Standards and approvals: EN 795:2012 Type B, TS 16415:2013 Type B, CE, ATEX
Specifications
Specifications
| Specification | Materia L | Height | Max. Span Length | Max. Load Capacity | Weight |
|---|---|---|---|---|---|
| SKU | Material | Height | Max. Span Length | Max. Load Capacity | Weight |
| SA43 | Tripod cast head and leg: Aluminium alloy rail supported welded sub assembly: High strength alloy steel Locking pins material: Stainless steel | 2.15m | 2300mm | 500kg | 51.29kg |
| SA43(W) | Tripod cast head and leg: Aluminium alloy rail supported welded sub assembly: High strength alloy steel Locking pins material: Stainless steel | 2.15m | 2300mm | 500kg | 53.28kg |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
