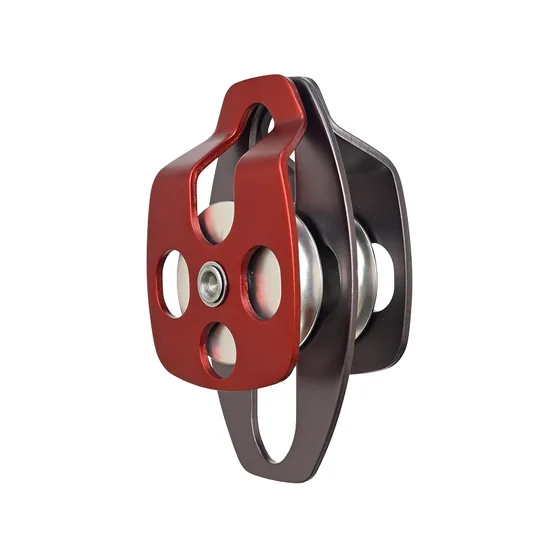

Supplier for KaramKaram Double Pulley for 16 mm Rope
Two sheave pulleys for hauling systems and rope direction changes where more mechanical advantage is wanted, for 16 mm rope. The plain aluminium AP013 has a single side attachment; the BB, SS and SS BB versions have two side attachments.
- AP013: aluminium alloy, single side attachment, 410.0 gms
- AP013(BB): aluminium sheaves on ball bearings, 520.0 gm
- AP013(SS): stainless steel sheaves on dry bearings, 810.5 gm
- AP013(SS)(BB): stainless steel sheaves on ball bearings, 770.0 gms
- Minimum breaking strength 36 kN; certified to EN 12278:2007
Standards and approvals: EN 12278:2007, CE
Specifications
Specifications
| Specification | AP013 | AP013(BB) | AP013(SS) | AP013(SS)(BB) |
|---|---|---|---|---|
| Material | Aluminium alloy | |||
| Works on | Rope of dia 16.0mm | |||
| Weight | 410.0gms | 520.0gm | 810.5gm | 770.0gms |
| Minimum Breaking Strength | 36kN | |||
| Finish | Natural silver, coloured anodized | |||
| Bearing Type | Ball bearing | Dry bearing | Ball bearing | |
| Sheave Material | Aluminium alloy | Stainless steel | Stainless steel |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
