Karam Megapod, Aluminium Confined Space Anchor
A light aluminium overhead anchor for confined space entry and rescue that one worker can often set up, with telescopic legs and ready fitted mounts for winches and retrieval blocks.

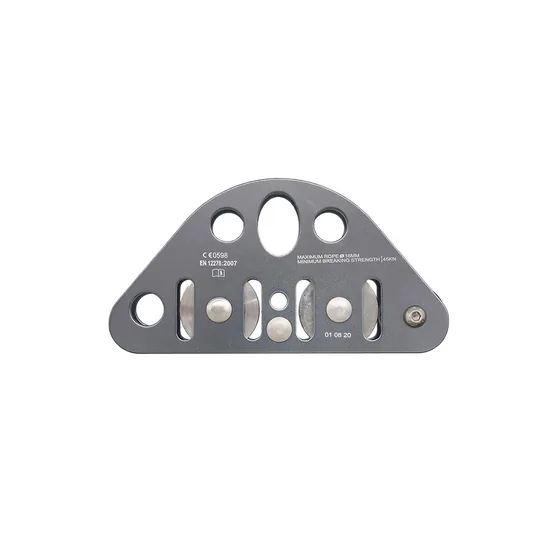

Supplier for KaramKaram Double Tandem Pulley, Large, Stainless Steel Sheaves
Two large stainless steel sheaves in line between aluminium side covers, rated 45 kN, for heavier hauling and rigging on 16 mm rope. Certified to EN 795:2012 Type B as well as EN 12278:2007.
- Two large stainless steel sheaves in tandem
- Aluminium alloy side covers, natural silver or coloured anodized
- Minimum breaking strength 45 kN
- For 16 mm rope; 810.0 gms
- EN 795:2012 Type B and EN 12278:2007
Standards and approvals: EN 795:2012 Type B, EN 12278:2007, CE
Specifications
Specifications
| Specification | AP015 |
|---|---|
| Material | Side cover: Aluminium alloy, sheaves: stainless steel |
| Works on | Synthetic rope/wire of dia 16.0mm |
| Weight | 810.0gms |
| Minimum Breaking Strength | 45kN |
| Finish | Natural silver/coloured anodized |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
More Karam Confined Space, Rope Access and Rescue
Karam Confined Space Tripod with Dual Pulley Head
A portable tripod that gives an overhead anchor for entry, exit and retrieval at manholes, tanks and deep utility areas, with a cast aluminium head carrying two pulleys for the winch and block lines.
Karam Hexapod for Large Below Ground Openings
Built for entry, rescue and lifting at confined spaces with larger openings below ground level. A mobile roller pulley with a stopper lets the anchor point be set right above the user, and the Hexapod suits two person rescue.
Karam Cantilever K-Pod, Stainless Steel
Sizes: PN900(06), PN900(07)
A stainless steel cantilever anchor that swivels a full circle on its mounted base, with three arm heights for spaces with low roof clearance. It can be installed on a floor, a wall or a vehicle top using special brackets.
Karam H-Base Davit, Portable Aluminium
A portable davit that breaks down into five parts for storage and transport and goes together without tools. It has foldable legs, three arm heights and a column that swivels under load.
Karam Confined Space Winch, Galvanized Wire Rope, EN 1496 Class A
Manual winches for raising and lowering a person or material through a manhole, tank or other confined opening, on 4.8 mm galvanized steel wire rope. PN801(DP) and PN801(40)(DP) end in a steel screw locking karabiner PN112; PN817(DP) ends in a steel swivel snap hook PN162.
