Karam Megapod, Aluminium Confined Space Anchor
A light aluminium overhead anchor for confined space entry and rescue that one worker can often set up, with telescopic legs and ready fitted mounts for winches and retrieval blocks.

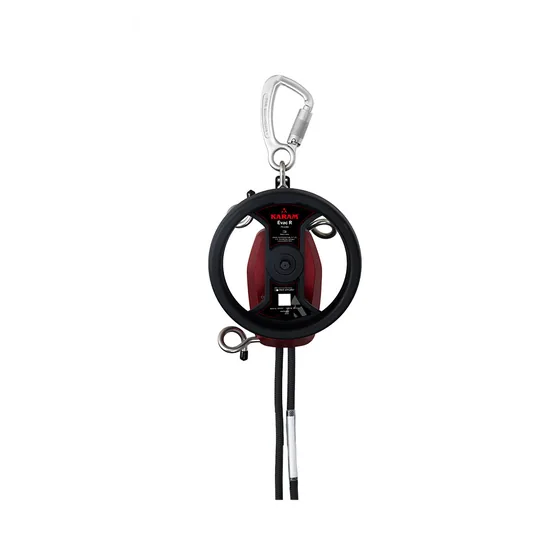

Supplier for KaramKaram Evac-R Rope Rescue Device
A rope rescue and access device with an automatic, redundant brake that takes up to three users and can be driven with an electric screwdriver for high ascents.
- Automatic and redundant brake system
- Maximum of 3 users
- Can be driven with an electric screwdriver for high ascents
- Rope ends in double figure of 8 knots for karabiner connection
- Aluminium alloy and high strength steel
- EN 341: 2011 (A for 2 persons, B for 3 persons), EN 1496:2017 Class B, EN 12841 Type C, ANSI Z 359.4:2013 and IS 3521(Part-9):2021
Standards and approvals: EN 341: 2011, EN 1496:2017, EN 12841 Type C, ANSI Z 359.4:2013, IS 3521(Part-9):2021, CE, ANSI, ISI
Specifications
Specifications
| Specification | PN408N |
|---|---|
| Material | Aluminium alloy and high-strength steel |
| Rope Dia | As per EN 341: dia 10mm semi static kernmantle rope As per EN 12841: dia 9.6mm-11 mm semi static kernmantle rope |
| Max. Weight Capacity | 300 Kg (max 1x500 mtr) |
| Controlled Descent Speed | Approx. 1.0 m/s with weight up to 85kgs Above 85Kgs the descent speed goes up to approx. 1.5 m/s The above speeds can easily be controlled using the “Eye Bolts” |
| Maximum Descent Height | 500 mtr |
| Certified to | EN 341: 2011-1 A (2 Persons), EN 341: 2011-1 B (3 Persons), EN 1496:2017-B, EN 12841 Type C, ANSI Z 359.4:2013, IS 3521(Part-9):2021 |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
More Karam Confined Space, Rope Access and Rescue
Karam Confined Space Tripod with Dual Pulley Head
A portable tripod that gives an overhead anchor for entry, exit and retrieval at manholes, tanks and deep utility areas, with a cast aluminium head carrying two pulleys for the winch and block lines.
Karam Hexapod for Large Below Ground Openings
Built for entry, rescue and lifting at confined spaces with larger openings below ground level. A mobile roller pulley with a stopper lets the anchor point be set right above the user, and the Hexapod suits two person rescue.
Karam Cantilever K-Pod, Stainless Steel
Sizes: PN900(06), PN900(07)
A stainless steel cantilever anchor that swivels a full circle on its mounted base, with three arm heights for spaces with low roof clearance. It can be installed on a floor, a wall or a vehicle top using special brackets.
Karam H-Base Davit, Portable Aluminium
A portable davit that breaks down into five parts for storage and transport and goes together without tools. It has foldable legs, three arm heights and a column that swivels under load.
Karam Confined Space Winch, Galvanized Wire Rope, EN 1496 Class A
Manual winches for raising and lowering a person or material through a manhole, tank or other confined opening, on 4.8 mm galvanized steel wire rope. PN801(DP) and PN801(40)(DP) end in a steel screw locking karabiner PN112; PN817(DP) ends in a steel swivel snap hook PN162.
