Karam Megapod, Aluminium Confined Space Anchor
A light aluminium overhead anchor for confined space entry and rescue that one worker can often set up, with telescopic legs and ready fitted mounts for winches and retrieval blocks.

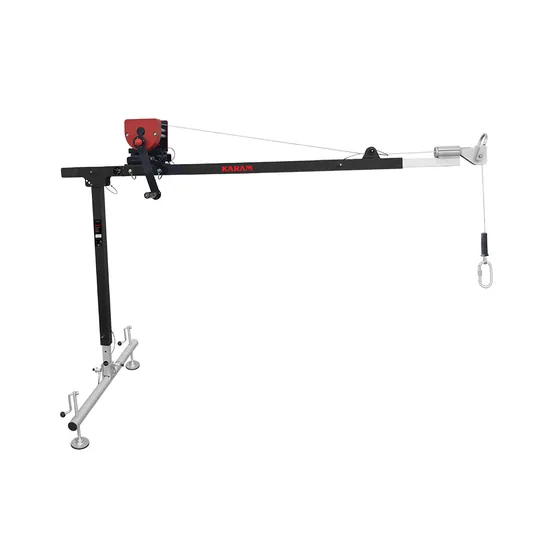

Supplier for KaramKaram Extendable Pole Hoist Davit
A light davit for confined spaces with limited overhead clearance, usable for vertical and horizontal entries, with three height points and an extra anchor point for side entry.
- Three height adjustment points
- Swivel upper mast for smooth rotation
- Base with swivel pads for balance during setup
- Pre-installed mounting brackets and a side entry anchor point
- Powder coated aluminium alloy, 13.19 kg
- AS/NZS 5532:2013 and EN 795:2012 Type A
Standards and approvals: AS/NZS 5532:2013, EN 795:2012 Type A, ASNZS, CE
Specifications
Specifications
| Specification | DA08 |
|---|---|
| Material | High strength and durable Aluminium Alloy |
| Finish | Powder Coated |
| System Strength | 15kN |
| Weight | 13.19kgs ± 0.10kgs |
| Maximum Load Capacity | 500 kgs |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
More Karam Confined Space, Rope Access and Rescue
Karam Confined Space Tripod with Dual Pulley Head
A portable tripod that gives an overhead anchor for entry, exit and retrieval at manholes, tanks and deep utility areas, with a cast aluminium head carrying two pulleys for the winch and block lines.
Karam Hexapod for Large Below Ground Openings
Built for entry, rescue and lifting at confined spaces with larger openings below ground level. A mobile roller pulley with a stopper lets the anchor point be set right above the user, and the Hexapod suits two person rescue.
Karam Cantilever K-Pod, Stainless Steel
Sizes: PN900(06), PN900(07)
A stainless steel cantilever anchor that swivels a full circle on its mounted base, with three arm heights for spaces with low roof clearance. It can be installed on a floor, a wall or a vehicle top using special brackets.
Karam H-Base Davit, Portable Aluminium
A portable davit that breaks down into five parts for storage and transport and goes together without tools. It has foldable legs, three arm heights and a column that swivels under load.
Karam Confined Space Winch, Galvanized Wire Rope, EN 1496 Class A
Manual winches for raising and lowering a person or material through a manhole, tank or other confined opening, on 4.8 mm galvanized steel wire rope. PN801(DP) and PN801(40)(DP) end in a steel screw locking karabiner PN112; PN817(DP) ends in a steel swivel snap hook PN162.
