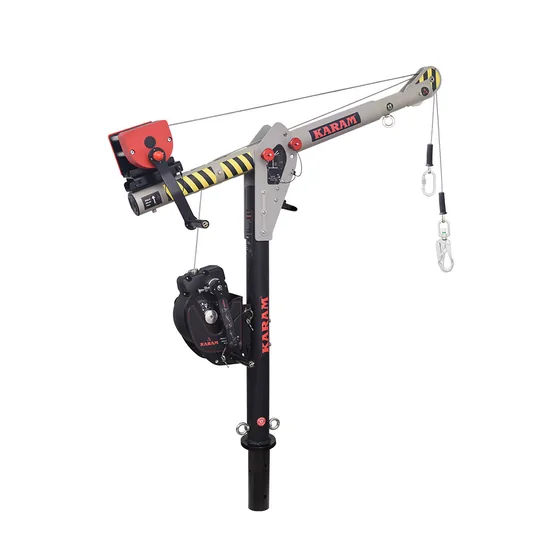

Supplier for KaramKaram Flush Mounted Davit
A davit that sits in a dedicated core sleeve set into concrete or a preformed casting, for large confined space openings, with a swivel mast that turns under load.
- Mounts in a dedicated core sleeve in concrete or preformed castings
- Two pre-installed lower mounting brackets for winch and retrieval device
- Multiple anchorage points
- Swivel lower mast rotates under load for precise positioning
- Powder coated aluminium alloy, 32.78 kg
- AS/NZS 5532:2013 and EN 795:2012 Type A
Standards and approvals: AS/NZS 5532:2013, EN 795:2012 Type A, ASNZS, CE
Specifications
Specifications
| Specification | DA06 |
|---|---|
| Material | High strength and durable Aluminium Alloy |
| Finish | Powder Coated |
| System Strength | 21kN |
| Weight | 32.78kgs |
| Maximum load capacity | 500 kgs |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
