Karam Megapod, Aluminium Confined Space Anchor
A light aluminium overhead anchor for confined space entry and rescue that one worker can often set up, with telescopic legs and ready fitted mounts for winches and retrieval blocks.

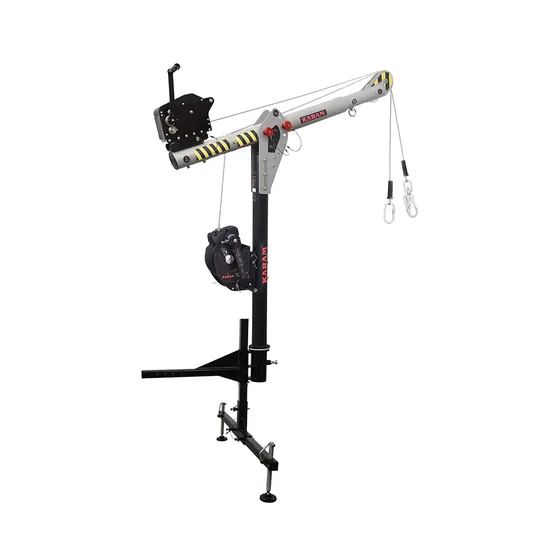

Supplier for KaramKaram Hitch Mounting Davit for Vehicles
A portable davit that fits a 2 inch (51.0 mm) vehicle tow hitch receiver, giving an anchor for confined space entry, retrieval, rescue and fall arrest where there is no overhead structure.
- Fits any vehicle with a 2 inch (51.0 mm) hitch receiver
- Upper mast offset (boom) with three adjustment positions
- Foldable leg for transport and storage
- Works with Karam winches PN817(DP) and PN818(DP) and retrieval blocks TPGS20R(N) and TPGS30R, each with mounting bracket SA17(26)
- Powder coated aluminium alloy, 56.54 kg
- Listed to AS/NZS 5532:2013 and EN 795:2012
Standards and approvals: AS/NZS 5532:2013, EN 795:2012 Type E, ASNZS, CE
Specifications
Specifications
| Specification | DA05 |
|---|---|
| Material | High strength and durable Aluminium Alloy |
| Finish | Powder Coated |
| System Strength | 21kN |
| Weight | 56.54 kgs |
| Maximum Load Capacity | 500 kgs |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
