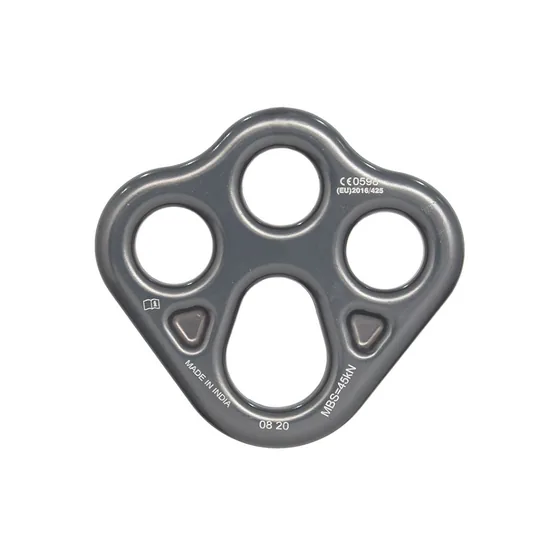

Supplier for KaramKaram Rigging Plate, Aluminium, 45 kN
An aluminium plate that spreads connections from one anchor in different directions, keeping multi line rope and rescue setups tidy. Two sizes: PRP01 (53.5 gms) and PRP02 (210.0 gms).
- Multiple anchor points in different directions
- Central eye takes karabiners of 19 mm diameter
- Minimum breaking strength 45 kN
- Aluminium alloy, natural silver or coloured anodized
- Karam lists VG 11 CNB/P/11.114
Standards and approvals: CE
Specifications
Specifications
| Specification | PRP01 | PRP02 |
|---|---|---|
| Material | Aluminium alloy | Aluminium alloy |
| Weight | 53.5gms | 210.0gms |
| Minimum Breaking Strength | 45kN | 45kN |
| Finish | Natural silver/Coloured anodized | Natural silver/Coloured anodized |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
