Supplier for KaramKaram Rope Termination Anchor

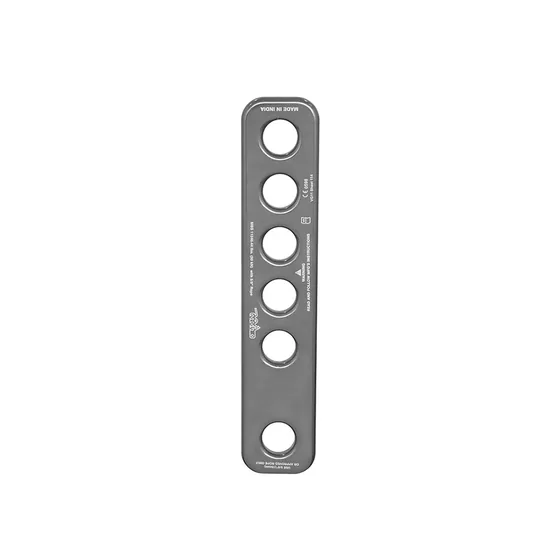

A six hole aluminium anchor for ending a textile rope lifeline without knots, splicing or swaging. The top hole connects to the anchorage and the rope is threaded through the others.
- Six holes: the top one to the anchorage, the rest for threading the rope
- No knots, splicing or swaging needed
- Connection point for vertical lifeline systems
- Lightweight and reusable, 248.5 gms
- Minimum breaking strength 23 kN
- Karam lists VG 11 CNB/P/11.114
Standards and approvals: CE
Specifications
Specifications
| Specification | ARC04 |
|---|---|
| Material | Aluminium alloy |
| Weight | 248.5gms |
| Minimum Breaking Strength | 23kN |
| Finish | Natural silver/Coloured anodized |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
