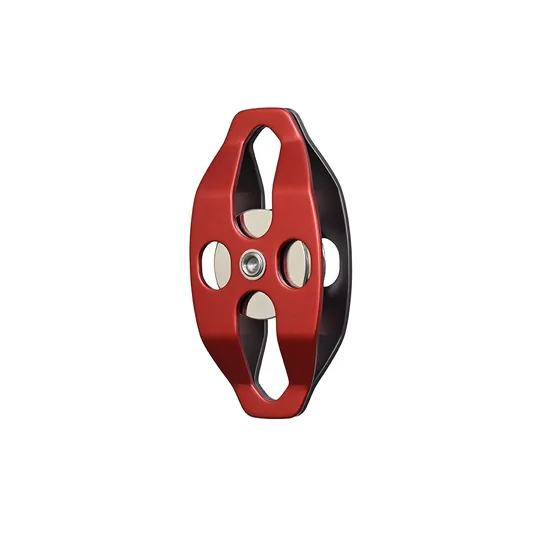

Supplier for KaramKaram Single Pulley, Two Side Attachment, for 16 mm Rope
Single sheave pulleys with attachment points on both sides, giving more ways to mount the pulley and change rope direction, for 16 mm rope.
- AP014: aluminium alloy, 275.0 gm
- AP014(BB): aluminium sheave on ball bearing, 330.0 gm
- AP014(SS): stainless steel sheave on dry bearing, 471.0 gms
- AP014(SSBB): ball bearing version with anodized body, 450.0 gms
- Minimum breaking strength 36 kN; certified to EN 12278:2007
Standards and approvals: EN 12278:2007, CE
Specifications
Specifications
| Specification | AP014 | AP014(BB) | AP014(SS) | AP014(SSBB) |
|---|---|---|---|---|
| Material | Aluminium alloy | |||
| Works on | Rope of dia 16.0mm | |||
| Weight | 275.0gm | 330.0gm | 471.0gms | 450.0gms |
| Minimum Breaking Strength | 36kN | |||
| Finish | Natural silver/coloured anodized | |||
| Bearing Type | Ball bearing | Dry bearing | Ball bearing | |
| Sheave Material | Aluminium alloy | Stainless steel | Aluminium alloy |
Specifications as published by Karam. Please confirm the exact model with us before ordering.
