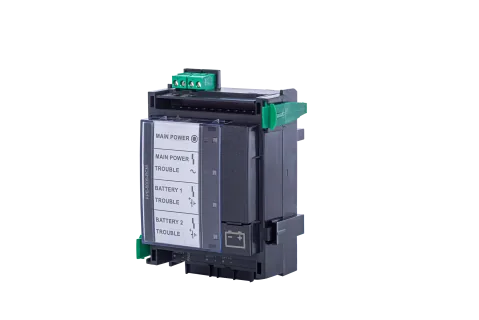

Dealer for BoschBosch FPE-8000-BCM Battery Controller Module for AVENAR Panels
A plug-in module that monitors the power supply of the AVENAR system and controls battery charging by time and temperature.
- Monitors the AVENAR system power supply and battery charging
- Temperature-controlled battery monitoring according to EN 54-4:1997/A2:2006 and EN 12101-10:2005/AC:2007
- Two voltage outputs of 2.8 A at 24 V each
- Plug-and-play technology with pluggable terminal blocks
- IP30, ABS plastic; size in mm (H x W x D): 127 x 97 x 63
Specifications
Specifications
| Specification | FPE-8000-BCM |
|---|---|
| Weight (g) | 200 |
| Current consumption (mA) | 0 to 2.8 |
| Operating temperature (°C) | -5 to 50 |
| Storage temperature (°C) | -20 to 70 |
| Output voltage (VDC) | 20.4 to 30 |
| Dimensions (H x W x D) (mm) | 127 x 97 x 63 |
| Operating relative humidity, non-condensing (%) | 95 |
| IP rating | IP30 |
| Color (RAL) | RAL 7016 Anthracite gray |
| Material | Plastic (ABS) |
Specifications as published by Bosch. Please confirm the exact model with us before ordering.
