Ravel 24 V DC Power Supply, 5 A
A mains powered 24 V DC power supply rated up to 5 A, with a built in charger for a lead acid backup battery.

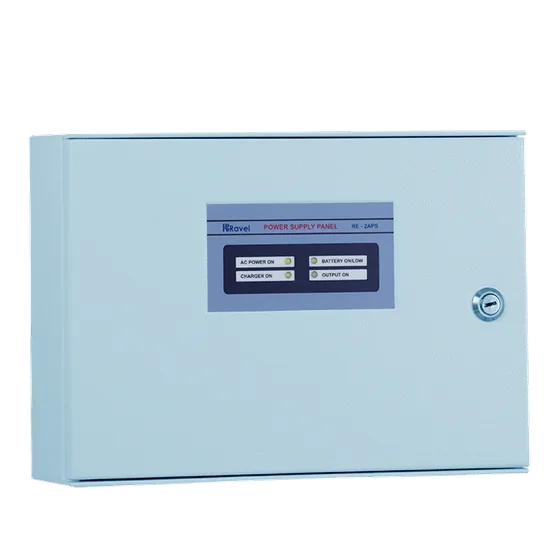

Dealer for RavelRavel 24 V DC Power Supply, 2 A
A mains powered 24 V DC power supply rated up to 2 A, with a built in charger for a lead acid backup battery.
- 220 V AC mains input
- 24 V DC output, up to 2 A
- Built in charging for a lead acid backup battery
- Low battery warning by light and tone
- DC output indication
- Enclosure 350 W x 300 H x 100 D (mm)
Specifications
Specifications
| Specification | RE-2APS |
|---|---|
| Mains | 220 VAC, 50 Hz +10%, -15%. |
| Wire size | 1.5 Sq. mm with 600V insulation |
| Charging Voltage | 27.9 VDC. |
| Charging Current | 800mA Max |
| System Quiescent Current | 35mA |
| Output Voltage | 24VDC @ 2A Max. |
| Dimension | 350 Width x 300 Height x 100 Depth (mm) |
| Weight | 7 Kg Max. |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
