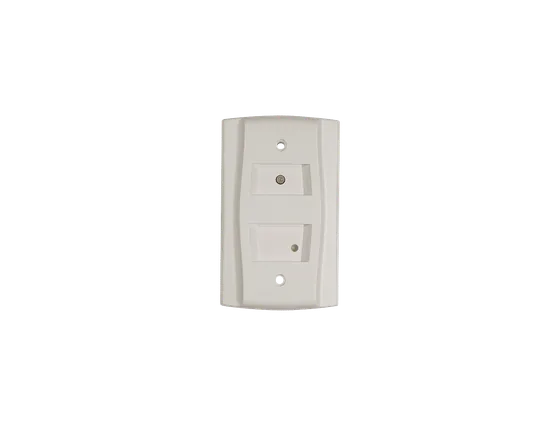

System Sensor RTS151 Remote Test Station for Duct Smoke Detectors
A remote test station for testing duct smoke detectors from a convenient location, with an alarm LED that lights red for 2-wire detectors.
- Test switch and reset switch rated 10 VA at 32 VDC
- Alarm LED rated 2.8 to 32 VDC, 12 mA max
- Alarm response time of 40 seconds max
- Accepts 14 to 18 AWG wire
- Temperature range -10 to 60°C
Specifications
Specifications
| Specification | RTS151 |
|---|---|
| Power Requirements | Alarm LED: 2.8 to 32 VDC, 12 mA max. | Total Current: 105 mA max. |
| Test Switch | 10 VA @ 32 VDC |
| Reset Switch | 10 VA @ 32 VDC |
| Alarm Response Time | 40 seconds max. |
| Temperature Range | -10°C to 60°C (14°F to 140°F) |
| Relative Humidity | 95% non-condensing |
| Wire Gauge | 14 to 18 AWG |
| Dimensions | 4.8˝ H x 2.90˝ W x 1.4˝ D |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
