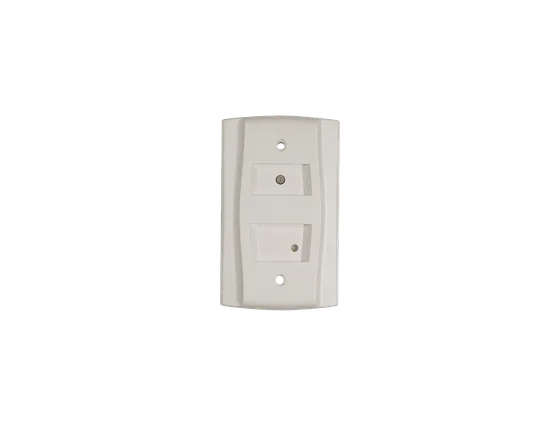

System Sensor RTS151KEY Remote Test Station with Key
The key-operated version of the RTS151 remote test station, for testing duct smoke detectors from a convenient location.
- Supplied with a key
- Test switch and reset switch rated 10 VA at 32 VDC
- Alarm LED rated 2.8 to 32 VDC, 12 mA max, lights red for 2-wire detectors
- Alarm response time of 40 seconds max
- Accepts 14 to 18 AWG wire, temperature range -10 to 60°C
Specifications
Specifications
| Specification | RTS151KEY |
|---|---|
| Power Requirements | Power LED (Green): 14 to 35 VDC, | 12 mA max. | Alarm LED (Red): 2.8 to 32 VDC, | 12 mA max. | Total Current: 105 mA max. |
| Alarm Response Time | 40 seconds max. |
| Temperature Range | -10°C to 60°C (14°F to 140°F) |
| Relative Humidity | 95% non-condensing |
| Wire Gauge | 14 to 18 AWG |
| Dimensions | 4.6˝ H × 2.75˝ W × 1.8˝ D |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
