HD Fire Automatic Ball Drip Valve, Bronze
A bronze automatic ball drip valve that forms part of HD's UL Listed deluge valve trim. It is used with the ETW-D, NTW, ETD-D and NTD trims on all HD deluge valve models.

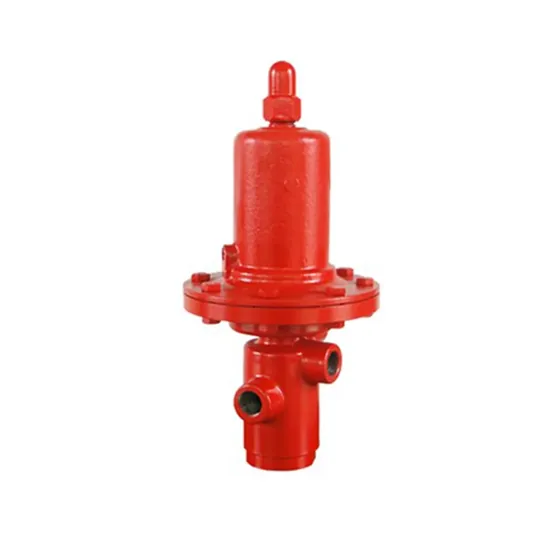

Dealer for HD FireHD Fire Dry Pilot Actuator (DPA) for Deluge Valves H2, H3 and H5
A device in the dry pilot section of the trim for HD deluge valve models H2, H3 and H5, and part of HD's UL Listed deluge valve trim.
- Used in the dry pilot trim of H2, H3 and H5 deluge valves
- Rated pressure 17.5 bar
- Part of UL Listed deluge valve trim
Standards and approvals: UL Listed
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| MODEL | H2 - Stainless Steel (standard supply) H1 - Bronze (optional supply) | |
| MAXIMUM | 250 psi (17.5 kg/sq.cm) | |
| OPERATING PRESSURE | WATER | |
| CONNECTION | 1/2” BSPT | |
| APPROVAL | Part of HD’s UL Listed Deluge Trim | |
| ORDERING INFORMATION | Model | |
| FINISH | Red - RAL 3001 |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
