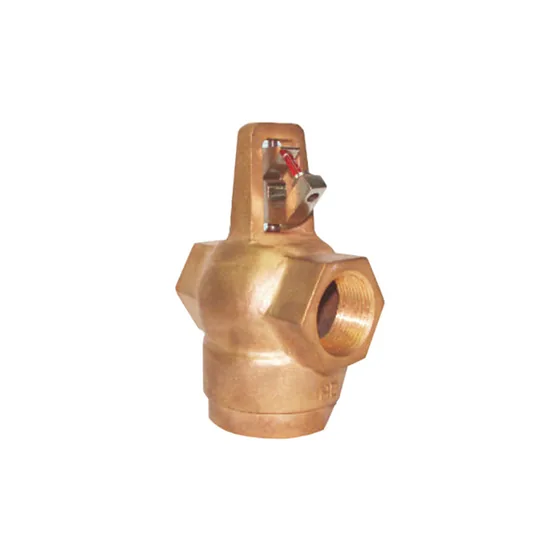

Dealer for HD FireHD Fire Multi Jet Control (MJC) Valve, Model MD, Bronze
A bronze multi jet control valve, model MD, with a 40 mm (1½ inch) inlet and a double outlet, offered in temperature ratings of 57, 68, 79 and 93°C.
- 40 mm (1½ inch) inlet with double outlet
- Temperature ratings 57°C, 68°C, 79°C and 93°C
- Service pressure 2 to 12 bar
- BSPT end connection, NPT as an option
- Brass finish or red painted
Specifications
Specifications
| Specification | MD - Double outlet |
|---|---|
| MODEL | MD - Double outlet |
| SIZE | 40NB Inlet - 32NB Double Outlet |
| SERVICE PRESSURE | 2 to 12 Bar |
| TEMPERATURE RATING | 57°C, 68°C, 79°C and 93°C |
| THREADED OPENING | Female BSPT connection (NPT Optional) |
| FACTORY HYDROSTATIC PRESSURE | 25 Bar (For Housing) 15 Bar (For Seat) |
| WEIGHT (Approx) | 3.00 Kg |
| FINISH | Brass finish or Red Epoxy painted |
| ORDERING INFORMATION | Specify Temperature rating |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
