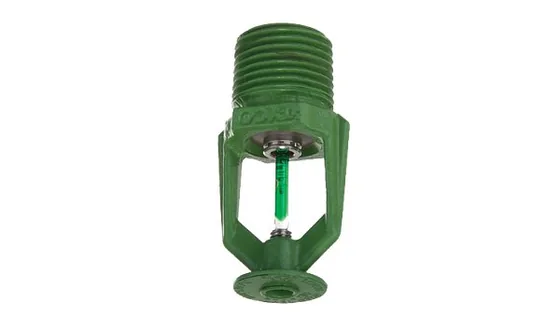

Supplier for TycoA fixed temperature heat detector built like a sprinkler, used instead of pilot sprinklers on wet or dry pilot lines to release deluge and preaction systems.
Standards and approvals: UL and C-UL Listed
| Specification | Details | TY3030 |
|---|---|---|
| Frame | Bronze | |
| Button* | Copper/Bronze | |
| Bulb | Glass (3 mm) | |
| Compression Screw* | Bronze | |
| Identification Plate | Copper/Brass | |
| Sealing Assembly | Beryllium Nickel w/TEFLON | |
| SIN | TY3030 | |
| Pipe Thread Connection | 1/2 NPT | |
| Discharge Coefficient | K=5.6 gpm/psi1/2 (80 lpm/bar 1/2) | |
| Maximum Working Pressure | 250 psi (17,2 bar) | |
| Temperature Ratings | 135°F (57°C) 155°F (68°C) 175°F (79°C) 200°F (93°C) | |
| Finish (Frame and Identification Plate) | Natural Brass, White Polyester Coated, or Green TEFLON Coated |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
Sizes: DN40 to DN200
A pre-assembled, pre-wired deluge valve riser in a free-standing cabinet, with the shut-off control valve, DV-5A automatic water control valve, waterflow and supervisory switches, and a control panel with back-up batteries.
A pre-assembled DV-5A valve package in a free-standing cabinet for indoor or outdoor use, with shut-off and downstream valves, galvanized trim and supervisory switches pre-wired to a junction box.
Sizes: DN40 to DN200
A diaphragm type automatic water control valve for deluge systems released by a water filled pilot line, with a double seat design that also actuates fire alarms when trimmed.
Sizes: DN40 to DN200
A diaphragm type automatic water control valve for deluge systems released by a pressurised dry pilot line, with a double seat design that also actuates fire alarms when trimmed.
Sizes: DN40 to DN200
A diaphragm type automatic water control valve for deluge systems released by an electric detection system, with a double seat design that also actuates fire alarms when trimmed.
Sizes: DN40 to DN200
A DV-5A diaphragm valve with remote-resetting trim, which can be opened and closed during full flow from a remote location and reset from one or more places.
A bronze automatic ball drip valve that forms part of HD's UL Listed deluge valve trim. It is used with the ETW-D, NTW, ETD-D and NTD trims on all HD deluge valve models.
A field adjustable device that regulates and restricts air flow to hold the air pressure in the pneumatic lines of a pre-action system or a dry pilot actuated deluge valve.
Sizes: 4”, 6”
UL Listed alarm check valve for the head of a wet sprinkler system, in 4 inch and 6 inch sizes with ANSI B16.5 flanged inlet and outlet.
A supervisory switch that monitors the open position of post indicator and butterfly control valves, with a bi-directional actuator for rising or falling flag installations.
A supervisory switch that monitors the open position of outside screw and yoke (OS&Y) gate valves, for indoor and outdoor use.
