Honeywell X-618 X-DA4125EN Class-D Amplifier, 4 x 125 W
A four channel Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.

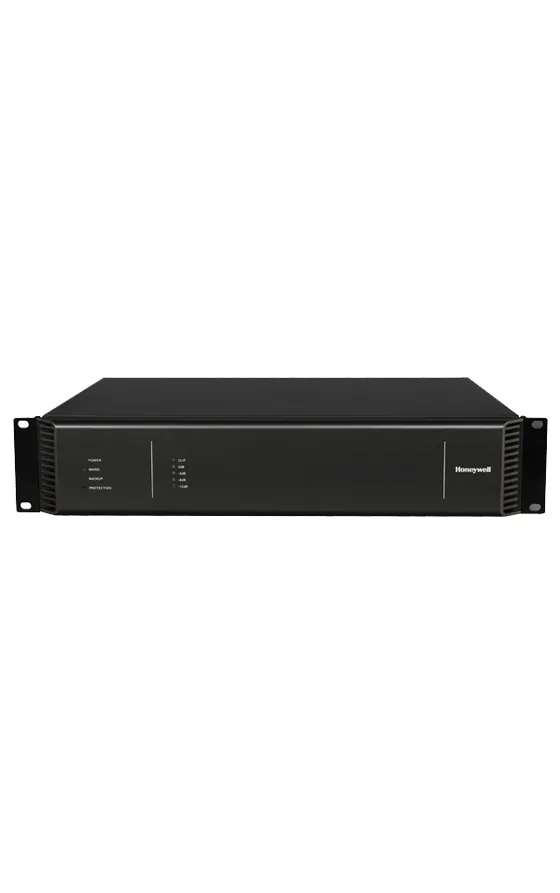

Dealer for HoneywellHoneywell Intevio HAM-2000 Power Amplifier, 500 W
A 500 W Class-D power amplifier that provides 70 V or 100 V audio amplification for the Intevio PAVA system, with dual channel audio capability.
- 500 W Class-D, with 70 V and 100 V output
- Balanced and unbalanced audio inputs
- Dual channel audio capability
- Plug-and-play setup, configurable keys and modular design
- Frequency response 80 Hz to 18 kHz, SNR above 100 dB
- AC 220 to 240 V supply, power consumption under 720 W
Standards and approvals: CE
Specifications
Specifications
| Specification | HAM-2000 |
|---|---|
| Frequency Response | 80Hz~18KHz (+1dB ~ - 3dB) |
| Main Power Supply Voltage | ~220V-240V 50/60Hz |
| Rated Power | 500W |
| Gross Weight | 13.2Kg |
| Backup power supply | ~220V-240V 50/60Hz |
| Main Power Supply Fuse | T10AH 250V |
| Humidity | < 95%, without condensing |
| Operating Temperature | -10°C~+55°C(14°F to +131°F) |
| Storage Temperature | -40°C~+70°C(-40°F to +158°F) |
| Product dimensions (W×H×D) | 482 mm×88 mm ×407 mm |
| Package dimension (W×H×D) | 580 mm×235 mm×552mm |
| Net Weight | 10.6Kg |
| Power consumption | <720W |
| Amplifier Output | 70V / 100V |
| Input impedance | 20KΩ |
| Input Sensitivity(RJ-45) | 1.4V |
| Aux, Input 1 | 1.4V |
| Aux, Input 2 | 100V |
| Audio cascade Output | 1.4V |
| SNR | >100 dB, A weighted |
| Non-linear distortion | <0.1% (at 1/3 rated power, 1kHz |
| Indicator Lights | Power, main power fault, backup power fault, protection and signal level indicator. |
| Cooling method | Air cooling |
| Indicator lights | Power, main power fault, backup power fault, protection and signal level indicator. |
| Description | Amplifier |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
