Honeywell Intevio HAM-2000 Power Amplifier, 500 W
A 500 W Class-D power amplifier that provides 70 V or 100 V audio amplification for the Intevio PAVA system, with dual channel audio capability.

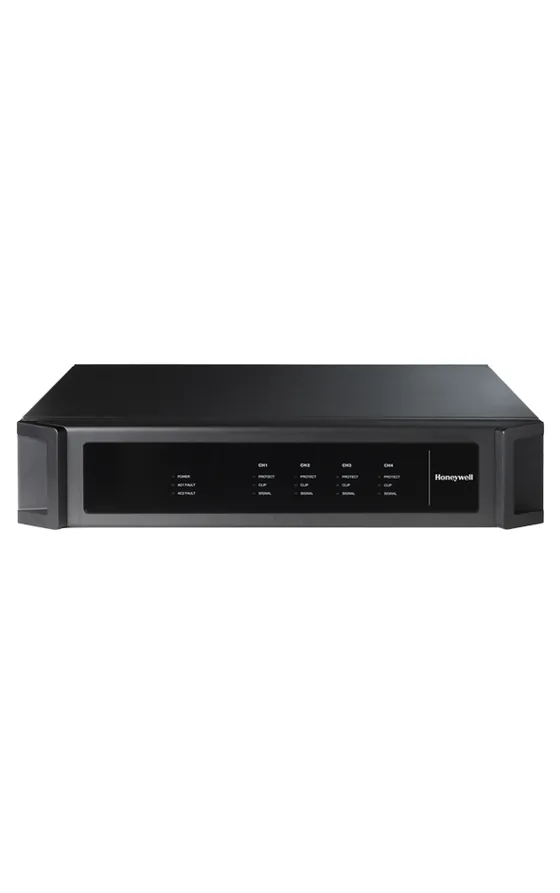

Dealer for HoneywellHoneywell X-618 X-DA4125 Amplifier, 4 x 125 W
A four channel amplifier for the X-618 digital PAVA system, with a built-in fuse for over-current protection and a cooling fan to keep it running efficiently.
- 4 x 125 W nominal output
- 100 V or 70 V speaker output
- Built-in fuse for over-current protection
- Cooling fan for heat exhaust
- AC 220 to 240 V main and backup supply
- CE and EN 54 listed
Standards and approvals: CE, EN 54
Specifications
Specifications
| Specification | X-DA4125 |
|---|---|
| Backup power supply voltage | ~ 220V-240V, 50/60Hz |
| Impedance | 20 KΩ |
| Impedance (2) | 20 KΩ |
| Frequency Response | 70 Hz -18 KHz (+1 dB ~ -3 dB) |
| Main Power Supply Voltage | ~ 220V-240V, 50/60Hz |
| Gross Weight | 16.0 Kg |
| Storage Temperature | -10°C~+55°C (14°F~131°F) |
| Product dimensions (W×H×D) | 416mm × 88mm × 483 mm |
| Package dimension (W×H×D) | 489mm × 186mm × 568 mm |
| Net Weight | 12.9 Kg |
| Power consumption | < 720 W |
| SNR | > 100 dB(with A-Weight) |
| Non-linear distortion | <0.05% (at 1/3 rated power, 1 KHz) |
| Indicator Lights | Power indicator light Main power fault light Backup power fault light Signal lights Peak clipping lights Equipment protection lights |
| Cooling method | Air Cooling |
| Nominal output power | 4 ×125 W |
| Main power supply protection | T10 AL 250 V |
| Seaker output voltage | 100 V / 70 V |
| Input sensitivity | 1.414VRMS |
| No | <0.05% (at 1/3 rated power, 1 KHz) |
| Indicator lights | Power indicator light Main power fault light Backup power fault light Signal lights Peak clipping lights Equipment protection lights |
| Number of channels | 4 |
| Relative Humidity | V 0 dBV |
| Description | X-DA4125 High Efficiency Power Amplifier 4×125W |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
