Honeywell Intevio HAM-2000 Power Amplifier, 500 W
A 500 W Class-D power amplifier that provides 70 V or 100 V audio amplification for the Intevio PAVA system, with dual channel audio capability.

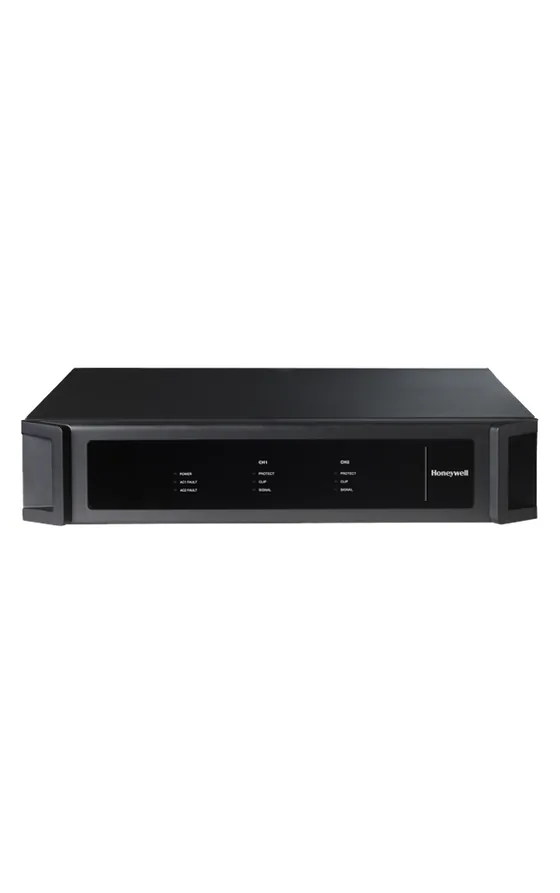

Dealer for HoneywellHoneywell X-618 X-DA2250 Amplifier, 2 x 250 W
Amplifies the audio for high power loudspeakers on the X-618 PAVA system, with balanced and unbalanced inputs and automatic detection of power supply errors.
- 2 x 250 W nominal output
- 100 V or 70 V speaker output
- Balanced and unbalanced audio inputs
- Detects power supply errors automatically during operation
- Lightweight, fire-proof design
- AC 220 to 240 V main and backup supply; CE listed
Standards and approvals: CE
Specifications
Specifications
| Specification | X-DA2250 |
|---|---|
| Operating Conditions | 95 % humidity, 0 °C ~+40 °C (0 ~ 104°F) (no condensation) |
| Impedance | 20 KΩ |
| Impedance (2) | 20 KΩ |
| Frequency Response | 70 Hz -18 KHz(+1 dB ~ -3 dB ) |
| Main Power Supply Voltage | ~ 220V-240V, 50/60Hz |
| Gross Weight | 15.3 Kg |
| Backup power supply | ~ 220V-240V, 50/60Hz |
| Storage Temperature | -10°C~ +55 °C (14°F~131°F) |
| Product dimensions (W×H×D) | 416mm × 88mm × 483 mm |
| Package dimension (W×H×D) | 489mm × 186mm × 568 mm |
| Net Weight | 12.2 Kg |
| Power consumption | < 720 W |
| SNR | > 100 dB(with A-Weight) |
| Non-linear distortion | <0.05% (at 1/3 rated power, 1 KHz) |
| Indicator Lights | Power indicator light Main power fault light Backup power fault light Signal lights Peak clipping lights Equipment protection lights |
| Cooling method | Air Cooling |
| Nominal output power | 2 × 250 W |
| Main power supply protection | T10 AL 250 V |
| Seaker output voltage | 100 V / 70 V |
| Input sensitivity | 1.414VRMS |
| No | <0.05% (at 1/3 rated power, 1 KHz) |
| Indicator lights | Power indicator light Main power fault light Backup power fault light Signal lights Peak clipping lights Equipment protection lights |
| Number of channels | 2 |
| Description | X-DA2250 High Efficiency Power Amplifier 2×250W |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
More Honeywell Voice Alarm Amplifiers
Honeywell X-618 X-DA4125EN Class-D Amplifier, 4 x 125 W
A four channel Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.
Honeywell X-618 X-DA1500EN-B Class-D Amplifier, 1 x 500 W
A single channel 500 W Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.
Honeywell X-618 X-DA2250EN-B Class-D Amplifier, 2 x 250 W
A two channel Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.
Honeywell X-618 X-DA4125 Amplifier, 4 x 125 W
A four channel amplifier for the X-618 digital PAVA system, with a built-in fuse for over-current protection and a cooling fan to keep it running efficiently.
Honeywell X-618 X-DA1500 Class-D Amplifier, 1 x 500 W
A 500 W Class-D amplifier for the X-618 PAVA system that detects power supply errors and protects itself against overheating, over-current, overvoltage and under-voltage.
Voice Alarm, Talk-back and Auto Dialers from other brands
Notifier
Notifier DVC-EM Digital Voice Command
The heart of the Notifier audio command centre, giving voice evacuation for emergency communications and mass notification, with 8 simultaneous messages and networking across a campus or large facility.
Notifier
Notifier DS-DB Digital Series Distribution Board
A distribution board that adds digital bulk audio evacuation to the DVC system, converting digital audio to analogue and routing it to amplifiers and optional backups.
Soft-Chip
Soft-Chip Microprocessor Fire Alarm Panel with Integrated Public Address
Microprocessor based fire alarm panel with a built-in PA system, a 100 V RMS output and up to 11 minutes of digital voice recording. Alert and evacuation announcements are sent through a PA zone selector with All Call.
Soft-Chip
Soft-Chip Talk-Back Master Station for Fire Fighter Telephones (2 to 64 Zones)
Sizes: 2,4,8,16,32,64 Zone
Microprocessor based master station for fire fighter telephone systems, available in 2 to 64 zones and working on a DTMF, PSTN based, 2 wire, 24 V telephone circuit. Soft-Chip states it is compatible with all conventional and addressable fire fighter telephone systems.
Agni
Agni FYRLAAST Fire Telephone Control Panel
The control panel of the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
Agni
Agni FYRLAAST Addressable Fire Extension Telephone
An addressable extension telephone for the FYRLAAST fire fighter telephone system. Specifications are confirmed on enquiry.
