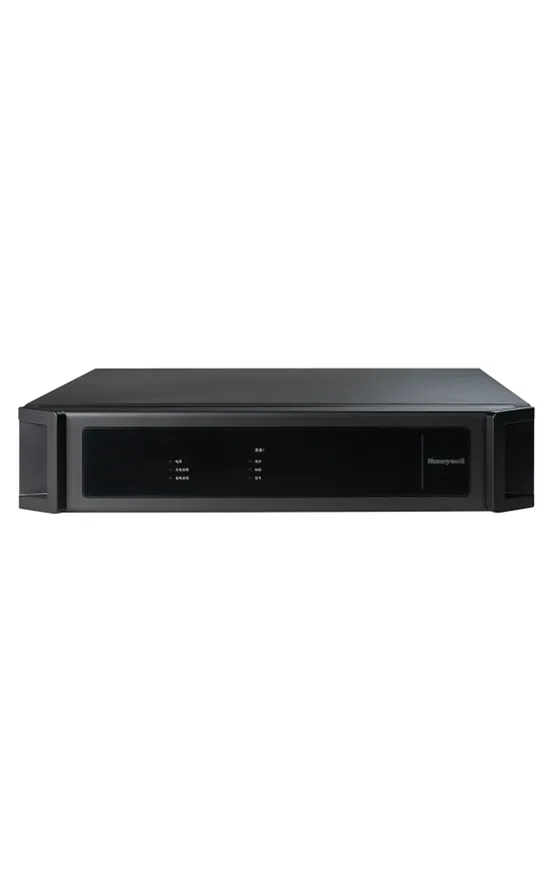

Dealer for HoneywellHoneywell X-618 X-DA1500EN-B Class-D Amplifier, 1 x 500 W
A single channel 500 W Class-D amplifier for the X-618 system with fully digital audio transmission, which keeps the signal free from interference and easy to control. It takes a 24 V DC backup supply.
- One channel of 500 W, Class-D
- 100 V or 70 V speaker output
- Automatic protection and fault detection
- Forced air cooling fan
- Mains 100 to 240 V, backup 21.5 to 28.5 V DC
- CE listed
Standards and approvals: CE
Specifications
Specifications
| Specification | X-DA1500EN-B |
|---|---|
| Rated Power | 1 × 500 W |
| Main power supply voltage | ~ 100 - 240 V, 50/60 Hz |
| DC Backup power supply operating voltage range | 21.5 V - 28.5 V DC |
| Power consumption | < 700 W |
| Main power supply protection | T10 AL 250 V |
| Speaker output voltage | 100 V / 70 V |
| Frequency response | 70 Hz - 18 kHz (+1 dB ~ -3 dB) |
| Input sensitivity | 1.414 VRMS |
| Impedance | 20 KΩ |
| SNR | > 100 dB (with A-Weight) |
| Non-linear distortion | < 0.05 % (at 1/3 rated power, 1 kHz) |
| Indicators | Power indicator light Main power fault light Backup power fault light Signal lights Peak clipping lights Equipment protection lights |
| Number of channels | 1 |
| Operating conditions | 95% humidity, 0°C ~ +40°C (0 ~ 104°F) (no condensation) |
| Storage temperature | -10°C ~ +55°C (14°F ~ 131°F) |
| Cooling method | Air cooling |
| Product dimensions (W×H×D) | 416 × 88 × 483 mm |
| Package dimensions (W×H×D) | 489 × 186 × 568 mm |
| Net weight | 10.8 kg |
| Gross weight | 13.9 kg |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
