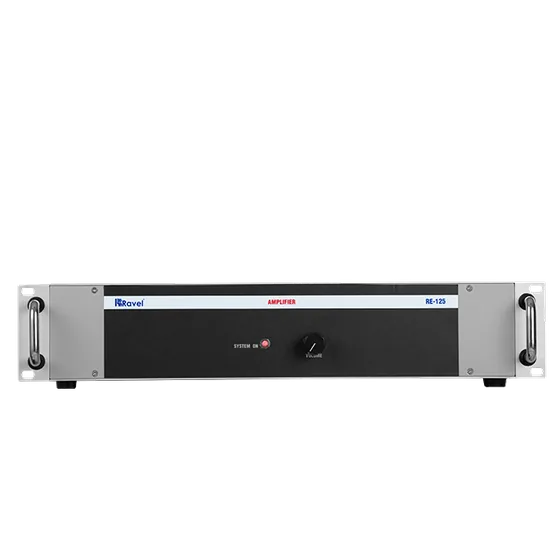

Dealer for RavelRavel Class D PA Amplifier, 125 W
A compact 125 W Class D digital amplifier with a 100 V output, fed from the main PA console.
- 125 W, 100 V audio output
- Class D amplifier with low heat and low power use
- Power on and audio level indication
- 220 V AC mains, 24 V DC standby
- 19 inch, 2U rack mounting
Specifications
Specifications
| Specification | RE: 125 |
|---|---|
| Primary Power | 220VAC ± 10%, 50 Hz. |
| Standby Power | 24 VDC |
| Maximum DC Current | 10Amps |
| audio output | 100V |
| Maximum Watts | 125 Watt |
| Audio Input | from main console |
| Dimensions(2U) | (484 W X 88 H X 325D)mm |
| Operating Temperature | 0 to 49° C / 32-120° F. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F. |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
