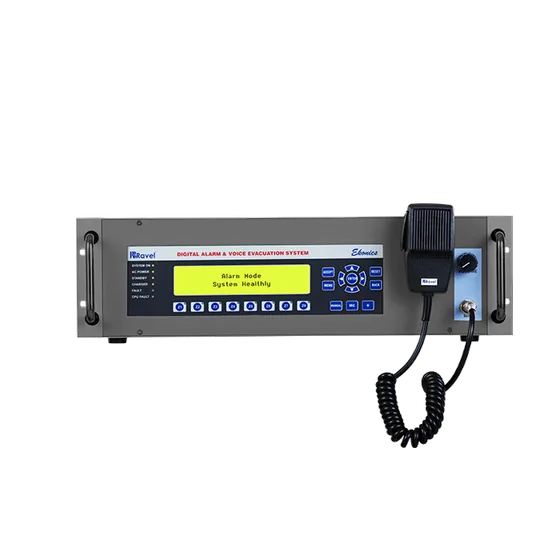

Dealer for RavelRavel Ekonics Digital Alarm and Voice Evacuation System
A rack mounted digital alarm and voice evacuation system with 4 audio inputs routed to 8 zones, expandable to 64, and 12 stored messages.
- 4 audio inputs to 8 zone outputs, expandable to 64 zones
- 12 programmable DVA or alarm messages, up to 120 seconds
- All call or zone wise paging, 40 x 4 LCD
- RS-485 link to the Avani panel, USB 2.0 for PC configuration
- 250 W (2 x 125 W), 24 V DC battery backup, 3 password levels
- Ravel provides a CE certificate
Standards and approvals: CE
Specifications
Specifications
| Specification | EKONICS |
|---|---|
| Primary Power | 220VAC + 10% -15%, 50 Hz |
| Standby Voltage | 24V DC (Lead acid battery) |
| Operating Temperature | 0 to 49° C / 32-120° F. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C / 90 ±3° F. |
| Charging Voltage | 28 V, ±0.5V Nominal |
| Charging Current | 1.2A (Max.). |
| DC Output | 24 VDC @ Max 3A |
| Audio Inputs | 4 |
| Audio outputs | 8 Zone (Expandable upto 64 ) |
| Build in DVA / Alarm storage | Max 12 Messages / 120 seconds |
| Analogue input interfaces | 8 Contacts (Normally Open) |
| Maximum Watts | 250Watt (2X125W) |
| Dimensions(3U) | 482.6 mm W X 134 mm H. |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
