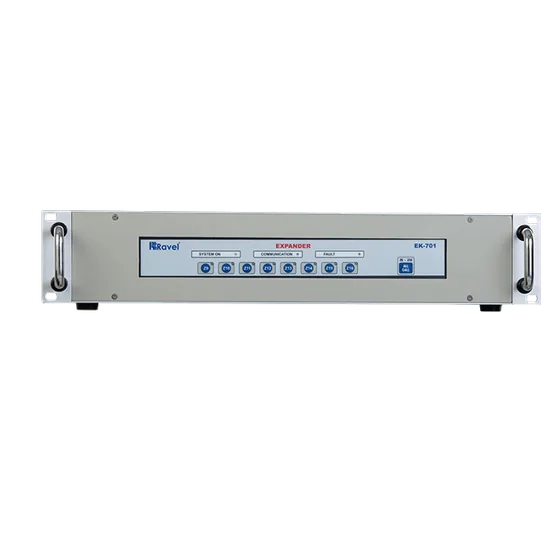

Dealer for RavelRavel EK-700 Series Zone Expanders for Ekonics
Rack mounted zone expanders that add speaker zones to Ekonics in groups of 8, from 9 to 64 zones.
- Seven models, EK-701 to EK-707, covering zones 9 to 64
- 2 audio inputs from Ekonics, 8 zone audio outputs each
- Zone wise speaker line selection with LED indication
- All field circuits supervised
- 19 inch rack mounting, 24 V DC standby
Specifications
Specifications
| Specification | Details |
|---|---|
| Standby Power | 24VDC |
| Operating Temperature | 0 to 49° C/32-120° F. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/90 ±3° F. |
| Audio Inputs | Pre-amp, DVD and Record input |
| Audio Output | 8 |
| Analogue input interfaces | 8 contacts (Normally open) |
| Dimensions(2U) | (484 W X 88 H X 325D )mm |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
