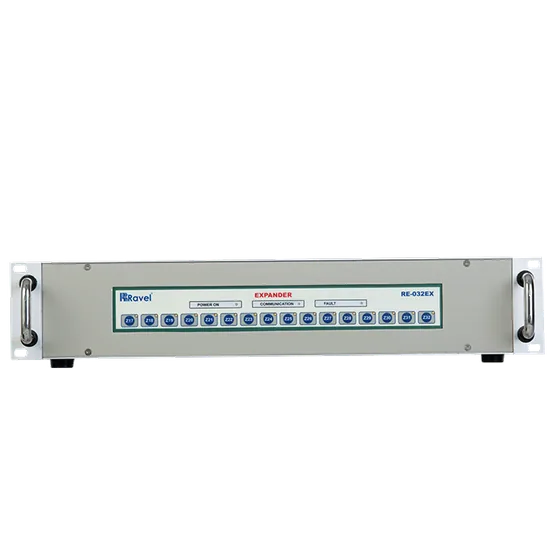

Dealer for RavelRavel RE-EX Series PA Zone Expanders for e’Scape
2U rack mounted zone expanders for the e’Scape console, adding zones in groups of 16 from 17 up to 128.
- Seven models, RE-032EX to RE-128EX, covering zones 17 to 128
- Zone wise speaker line selection with LED indication
- 100 V audio output, plug type connectors
- Automatic announcing mode on alarm
- 24 V DC input, RS-485, 19 inch 2U rack
Specifications
Specifications
| Specification | Details |
|---|---|
| Input Voltage | 24VDC |
| Operating Temperature | 0 to 49° C/32-120° F. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/90 ±3° F. |
| audio output | 100V |
| Maximum Switching Wattage | 500W |
| Maximum Zone Output | 30W per Zone |
| Audio Input | From Main Console |
| Communication Interface | RS-485 |
| Dimensions(2U) | (484 W X 88 H X 325D )mm |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
