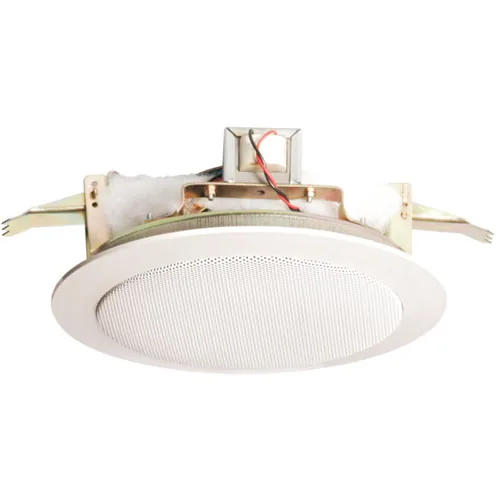

Dealer for RavelRavel PA Ceiling Speaker, 10 W
A flush mounted 10 W ceiling speaker with a 15 cm cone and spring catch mounting, for 100 V line PA systems.
- 15 cm dynamic cone, flush ceiling mounting
- 10 W, three selectable power taps on a 100 V line
- 92 dB (1 W, 1 m)
- White ABS grill with metal punched net, rear dust cover
- Spring catch mount and screw connectors
Specifications
Specifications
| Specification | RE-LS10C |
|---|---|
| Power | 10W |
| Tappings 100V line | 1.5W / 3W / 6W |
| Sound Pressure Level | 92dB (1W,1M) |
| Frequency | 60-15000Hz |
| Material | ABS Plastic |
| Dimensions | Ø 210 mm, H 90 mm. |
| Weight | 1Kg (Approx) |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
