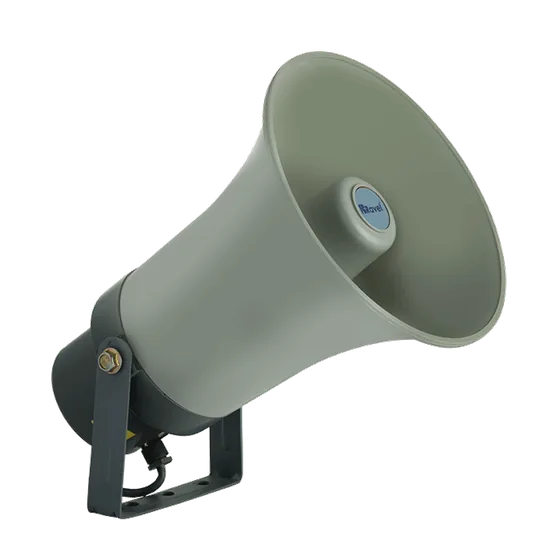

Dealer for RavelRavel PA Horn Speaker
An ABS horn speaker with a 100 V line matching transformer whose power tap is set by a rotary switch at the rear.
- 15 W RMS (24 W max) input power
- Taps from 2.5 W to 15 W, set by a rear rotary switch
- 106 dB at 1 kHz
- ABS horn, powder coated C.R.C. U bracket
- 100 V line matching transformer
Specifications
Specifications
| Specification | RE-LU100XT |
|---|---|
| HORN FLARE | ABS RESIN, OFF WHITE |
| REFLECTOR HORN | ABS RESIN, DARK GRAY |
| REAR COVER | ABS RESIN, DARK GRAY |
| ‘U’ BRACKET | C.R.C., DARK GRAY, POWDER COATING |
| SCREWS AND BOLTS | M.S. |
| SPEAKER CABLE | P.V.C. CABLE |
| Input Power | 15W (RMS) 24W (MAX) |
| Taps | 2.5W, 5W, 7.5W, 10W, 12.5W, 15W |
| Impedance | 100V Line |
| Frequency Response | 275 to 7000 Hz |
| Type | ABS Plastic |
| Size | 205 Ø (271 L) |
| SPL @1Khz | 106dB |
| Weight (Approx.) | 1.800Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
