Ravel Ekonics Digital Alarm and Voice Evacuation System
A rack mounted digital alarm and voice evacuation system with 4 audio inputs routed to 8 zones, expandable to 64, and 12 stored messages.

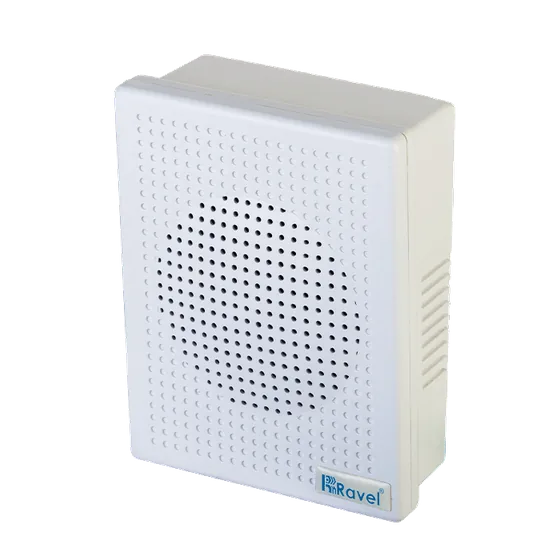

Dealer for RavelRavel PA Wall Speaker, 10 W
A slim white wall speaker with a 12.5 cm cone for announcements and paging, with a 100 V line transformer.
- 12.5 cm cone, 10 W music power
- Taps of 1.5 W, 3 W and 6 W on a 100 V line
- 90 dB (1 W, 1 m)
- White ABS plastic box, optional volume control
- Suits office cabins, work stations, classrooms, shops and malls
Specifications
Specifications
| Specification | RE-LS10W |
|---|---|
| Music Power | 10W |
| Impedance | 100V line |
| Tappings | 1.5W, 3W, 6W |
| Dynamic Cone Speaker | 1 X 12.5 CM |
| Frequency | 60 to 15000Hz |
| SPL@(1W/1M) | 90 dB |
| Weight | 0.670 Kg (Approx.) |
| Dimensions | (180 H X 140 W X 70D) mm |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
