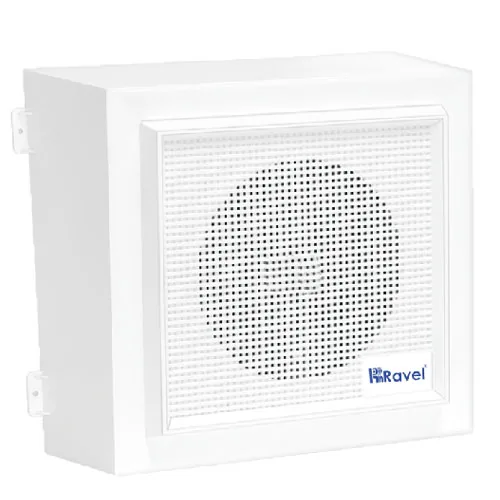

Dealer for RavelRavel PA Wall Speaker, 20 W
A higher power white wall speaker with a 15 cm cone, for a tappable 100 V line or a 4 ohm connection.
- 15 cm cone, 20 W input power
- Tappable 100 V line or 4 ohm connection
- 90 dB (1 W, 1 m)
- White ABS box with sculptured edge
- Optional volume control
Specifications
Specifications
| Specification | RE-LS20W |
|---|---|
| Input Power | 20W |
| Tappings | 100V Line / 4 ohms |
| Impedance | 2.5W, 5W, 10W |
| Dynamic cone Speaker | 1 X 15 CM |
| Frequency Response | 100 to 15000 Hz |
| SPL @ (1W/1M) | 90 dB |
| Weight (Approx.) | 1.850Kg |
| Dimensions | ( 250H X 260W X 113D ) mm |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
