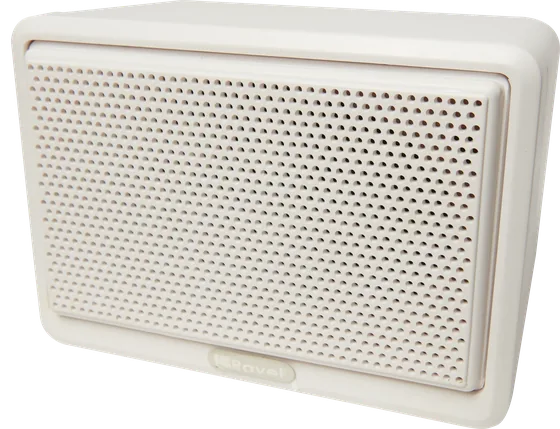

Dealer for RavelRavel PA Wall Speaker, 6 W
A slim white wall speaker for announcements and paging, with a 100 V line transformer and an optional volume control.
- 6 W, taps of 1.5 W, 2.5 W and 6 W on a 100 V line
- 90 dB (1 W, 1 m)
- White ABS plastic box for wall mounting
- Optional volume control
- Suits office cabins, work stations, classrooms, shops and malls
Specifications
Specifications
| Specification | RE-LS6W |
|---|---|
| Music Power | 6W |
| Impedance | 100V line |
| Tappings | 1.5W, 2.5W, 6W |
| Frequency | 60 to 15000Hz |
| SPL@(1W/1M) | 90 dB |
| Weight | 0.670 Kg (Approx.) |
| Dimensions | (190 L X 135 H X 120 D) mm |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
