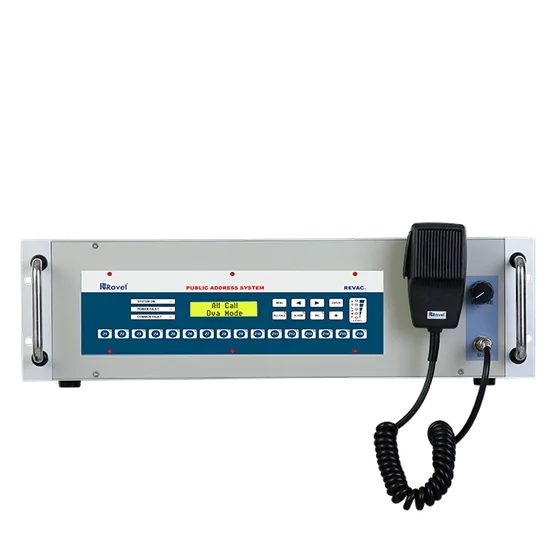

Dealer for RavelRavel REVAC Nx PA Main Console, 1 to 16 Zones
A rack mounted 1 to 16 zone PA console with a built in 125 W or 250 W amplifier, which Ravel states can be integrated with any third party fire alarm panel.
- 1 to 16 zones with zone wise speaker line selection
- Built in 125 W or 250 W amplifier, up to 500 W with an extra amplifier
- Push to talk microphone for announcements
- Can be integrated with any third party fire alarm panel
- 100 V output, RS-485, 24 V DC battery backup
- Ravel states CE approval
Standards and approvals: CE
Specifications
Specifications
| Specification | REVAC Nx |
|---|---|
| Primary Power | 220VAC ± 10%, 50 Hz. |
| Standby Power | 24VDC |
| Charging Voltage | 28 V ±0.2V Nominal |
| Charging Current | 1.2A (Max.). |
| Operating Temperature | 0 to 49° C/32-120° F. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/90 ±3° F. |
| Relay contact rating : 28 V ±0.2V Nominal | 2 Amps @ 30VDC, 0.5 Amps @ 125VAC. |
| DC Output | 24 VDC @ Max 3A |
| audio output | 100V |
| Max Wattage | Built-in 125W / 250W ; 500W Max. |
| Audio Input | Inbuilt MIC, DVA & Alarm tone |
| MIC Type | Hand mobile |
| Communication Interface | RS-485 |
| Dimensions(3U) | (484 W X 134 H X 325 D)mm |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
